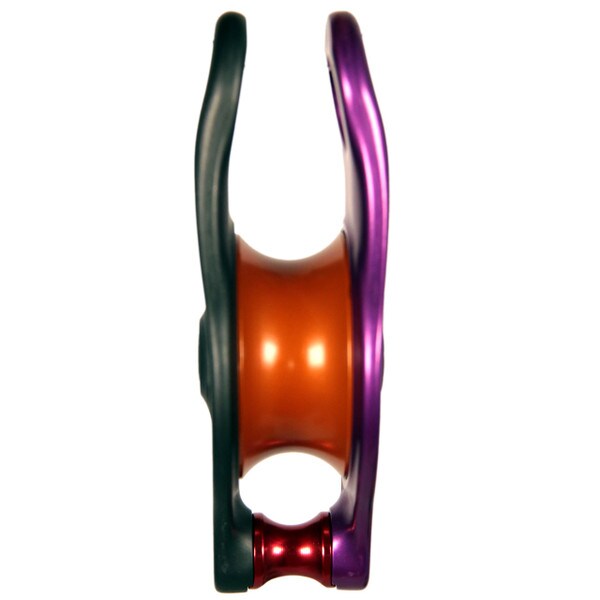

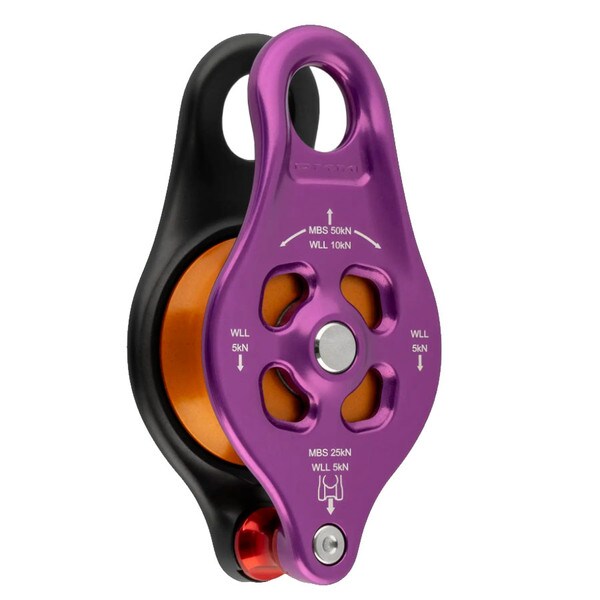

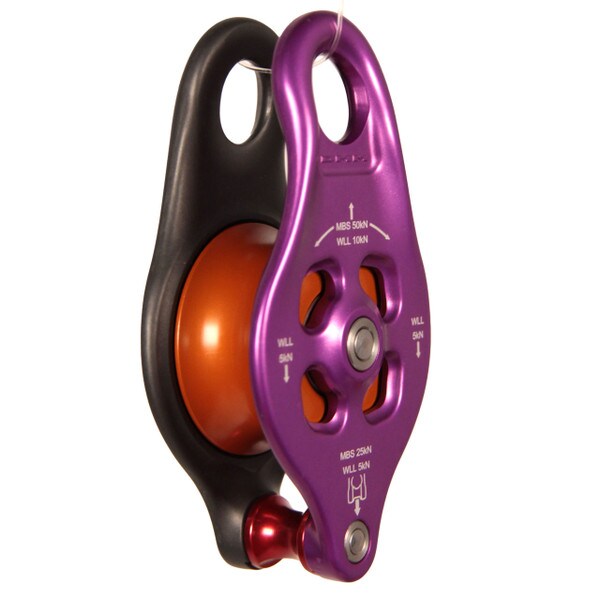

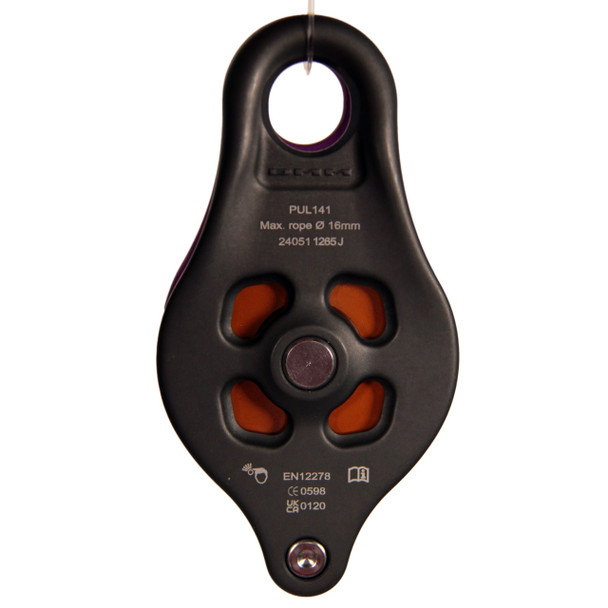

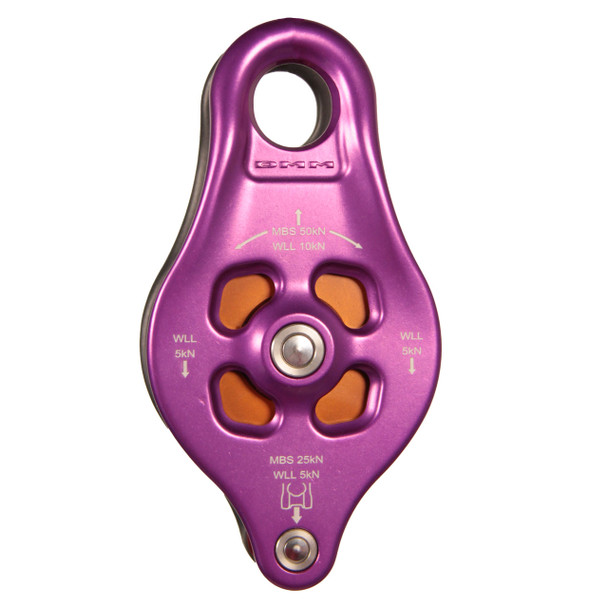

DMM Pinto Rig 2 Pulley

The DMM Pinto Rig pulley has been updated to the Pinto Rig 2. It remains the compact, high-strength rigging pulley with some improvements. A roller in the full-strength becket makes it even smoother, and improved rope channel in the bigger 38mm sheave keeps your ropes running straight even when running at an angle.

High strength and sleek design make the DMM Pinto Rig Pulley a great addition to your gear bag. Rounded anchor holes work great with custom spliced terminations or carabiners. Fairlead flares and rounded cheek plate edges help maintain high working efficiency, and attachment holes reduce the probability of carabiner rotation.

A chunky version of our Pinto Pulley for more efficient rigging and hauling. With beautifully smooth parallel connection holes and a load bearing becket, Pinto pulleys can be clipped, hitched, spliced or threaded to give numerous work and rescue configurations. Loved the world over by Treecare professionals, they are equally as useful for rescue and hauling situations.

Specifications

• MBS: 50 kN (25 kN becket)
• WLL: 10 kN (5 kN becket)
• Dimensions: 115 x 60 x 37mm
• Weight: 222 g
• Max. Rope Diameter: 16mm

Certification

• EN 12278:2007

Features

• Full strength attachments at eye and becket provide a wide range rigging options
• Fixed sideplate design is easy to clip into and load onto tensioned ropes
• Hot forged and robust, with smooth rope and textile friendly fairleads and edges
• Connect directly in with textile components for extra versatility: increase lift height, minimize space required, or enhance tolerance to torsion
• Recessed sheave design helps rope feed smoothly from all angles
• Sealed ball bearings for high efficiency and low maintenance

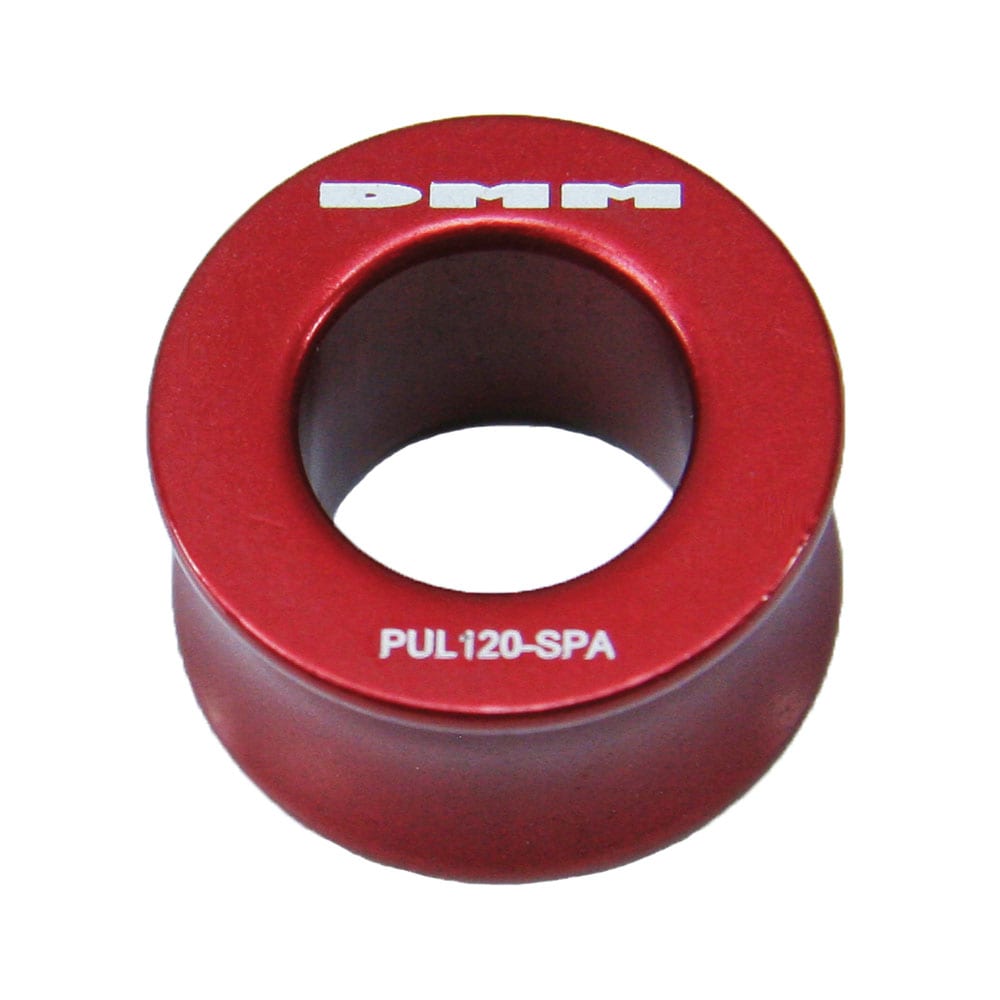

• Optional spacer available separately for use with rope connection
• Tamperproof construction
• Made in Wales, and certified for peace of mind
