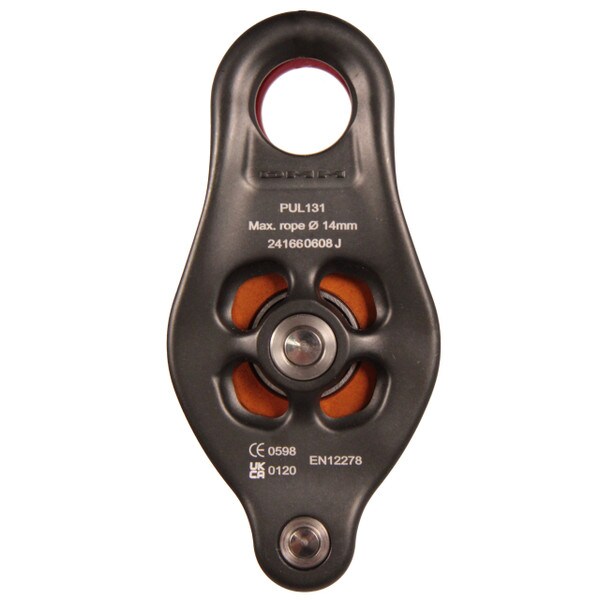

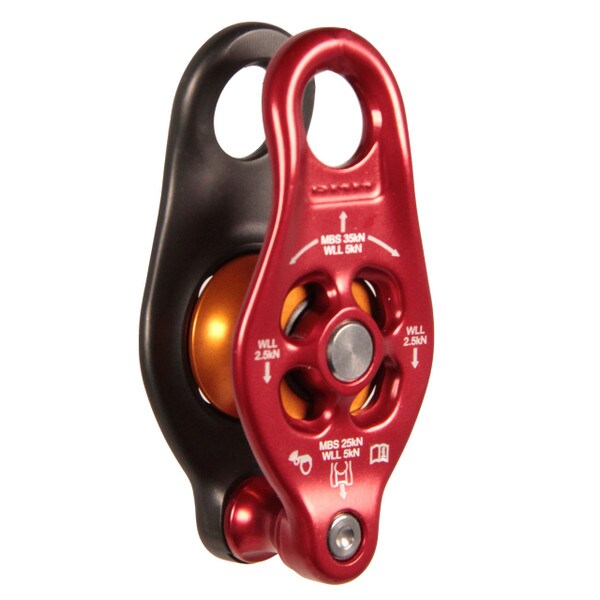

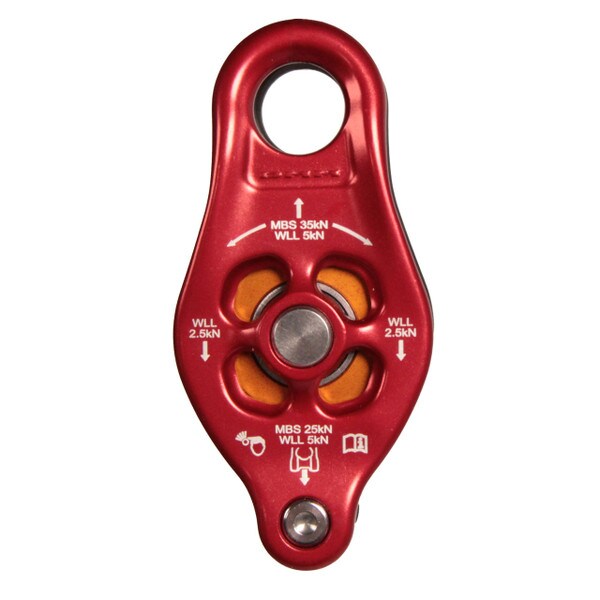

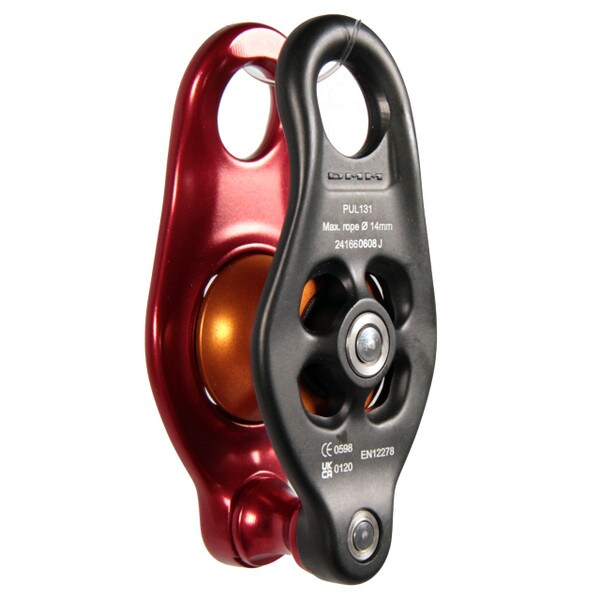

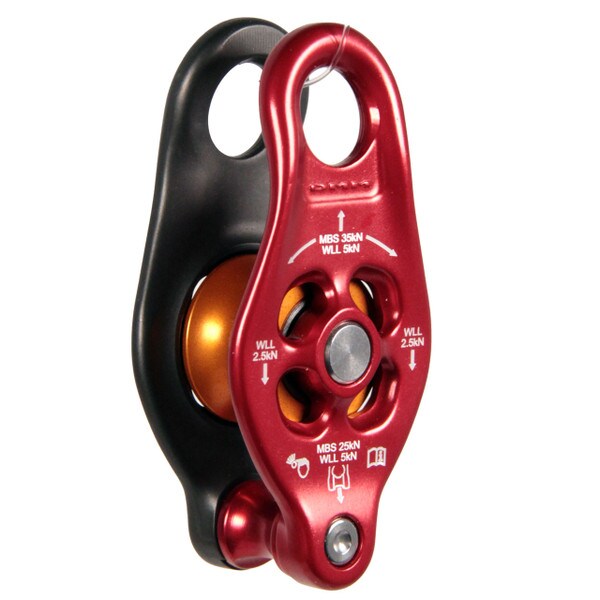

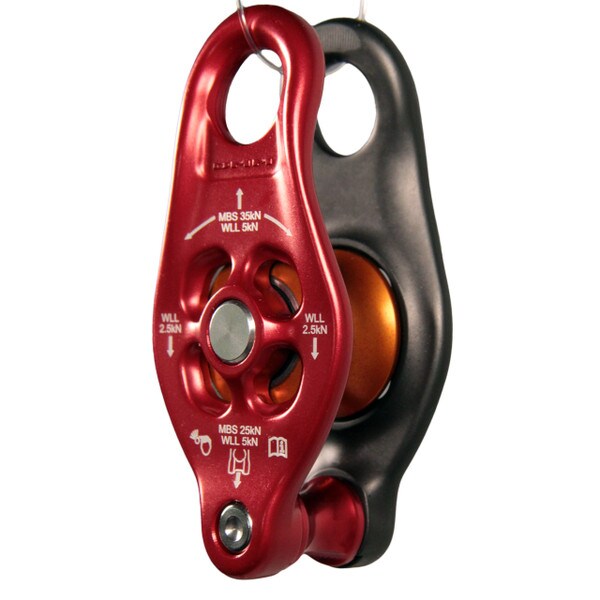

DMM Pinto 2 Pulley

DMM Pinto 2 pulley now in stock. This revised version of the Pinto pulley remains compact and strong, with smooth lines and rope-friendly surfaces. The full strength becket now incorporates a roller for smoother rope running. Recessed sheave design creates a smooth rope channel, keeping your rope in the groove even when fed at odd angles.

These features are why this pulley has it's name - Pulley I Need To Own (Pinto).

Incredibly high strength in this compact and sleek micro pulley. Rounded anchor holes work great with custom spliced terminations or carabiners. Fairlead flares and rounded cheek plate edges help maintain high working efficiency, and attachment holes reduce the probability of carabiner rotation.

With beautifully smooth parallel connection holes and a load bearing becket, Pinto pulleys can be clipped, hitched, spliced or threaded to give numerous work and rescue configurations. Loved the world over by Treecare professionals, they are equally as useful for rescue and hauling situations.

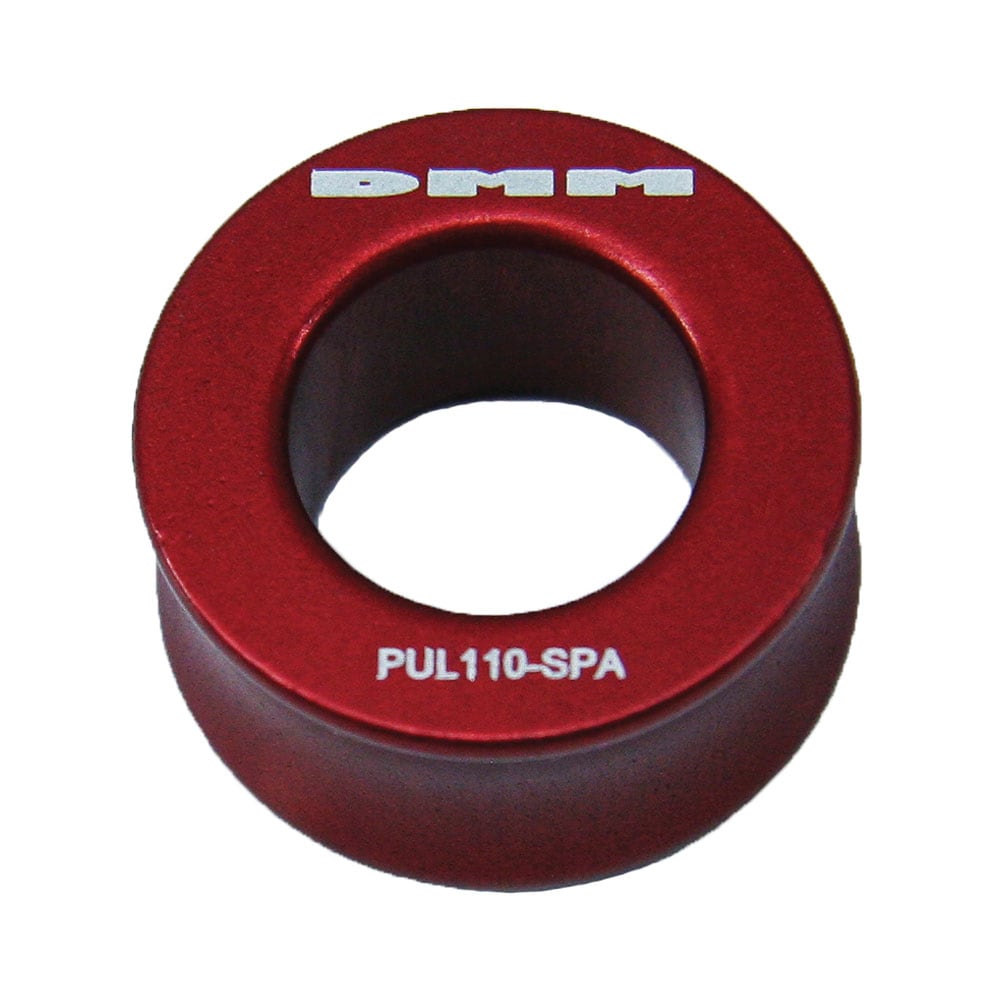

A Spacer is available to support the Pinto cheeks when direct attachment of textile products may cause 'pinching'

Specifications

• MBS: 35 kN (25 kN becket)
• WLL: 5 kN (5 kN becket)
• Dimensions: 95 x 45 x 34mm
• Weight: Buckingham g
• Maximum Rope Diameter: 14mm

Certifications

• EN 12278:2007

Features

• Full strength attachments at eye and becket provide a wide range rigging options
• Fixed sideplate design is easy to clip into and load onto tensioned ropes
• Hot forged and robust, with smooth rope and textile friendly fairleads and edges
• Connect directly in with textile components for extra versatility: increase lift height, minimize space required, or enhance tolerance to torsion

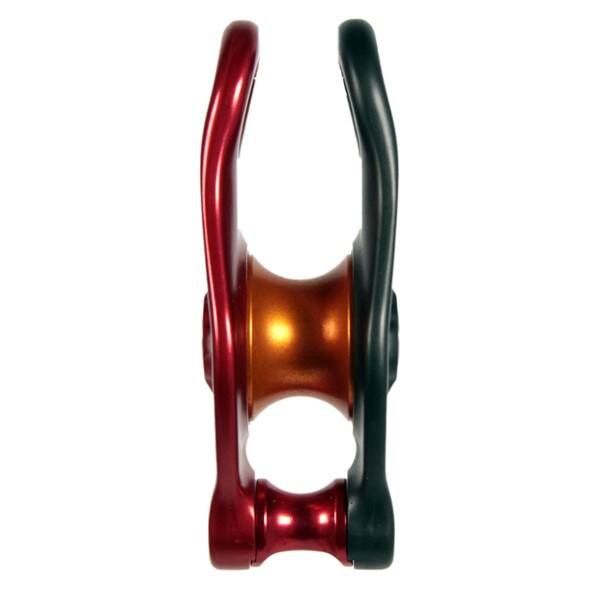

• Recessed sheave design helps rope feed smoothly from all angles
• Sealed ball bearings for high efficiency and low maintenance
• Optional spacer available separately for use with rope connection
• Tamperproof construction
• Made in Wales, and certified for peace of mind
