Tree Guard Dynamic Cabling
Protect your customers' trees better with Tree Guard dynamic, non-invasive cabling.
These PDFs from Drayer include helpful info for planning and installing Tree Guard dynamic cabling. Note that they refer to this system as "Tree Save" in Europe, which is a different product in the USA.
-

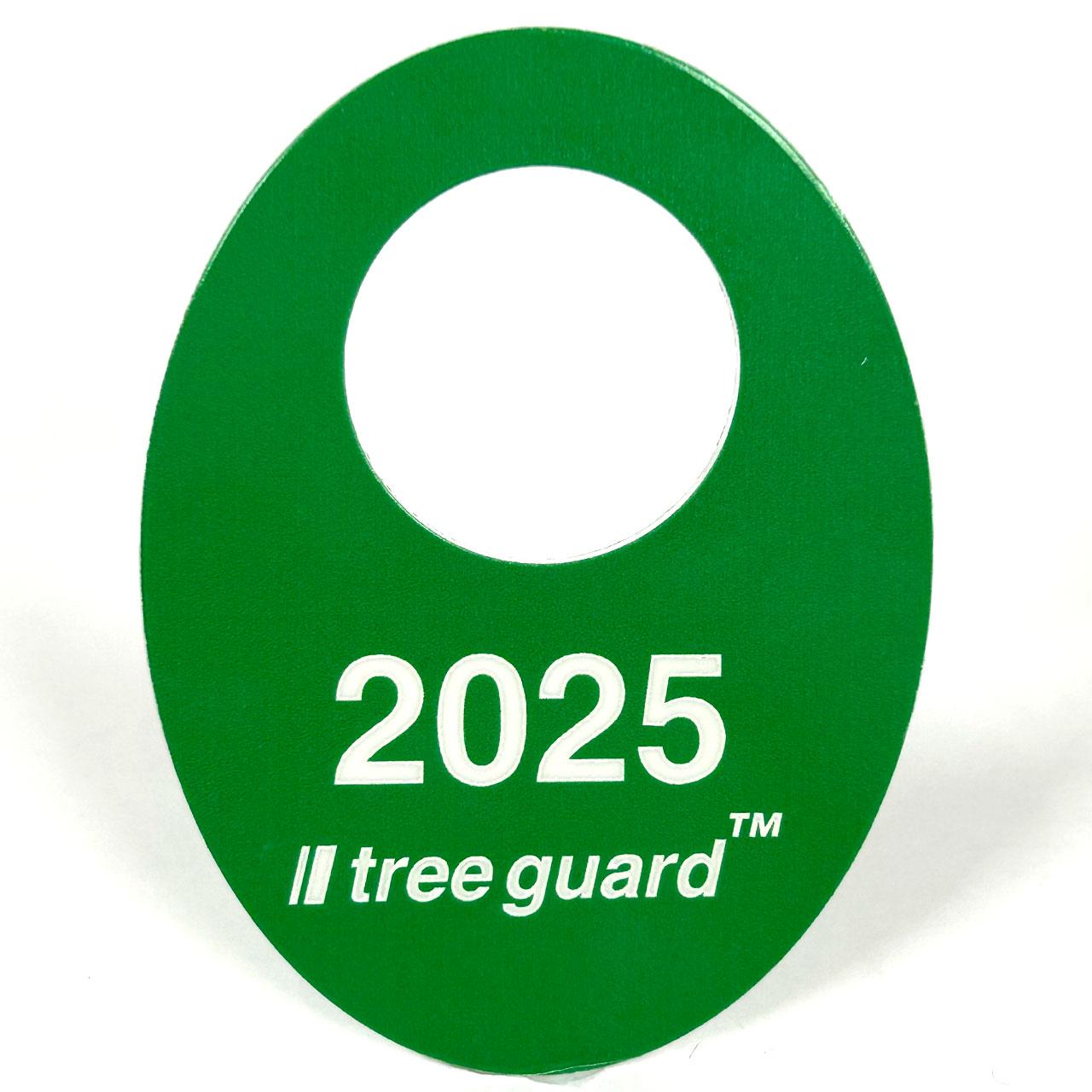

Tree Guard Mounting Marker
Drayer
Our Price $2.00Install a Tree Guard mounting marker with each cabling installation and make it easy for your customers to know when their system was installed, and when to call you back to inspect it.RIG922- SKU:
- RIG922
Our Price $2.00 -
Tree Guard Slings - 20 kN (2-ton)
Drayer
Our Price $25.40 - $30.28Tree Guard SlingsTree guard slings should be long enough to lay both eyes easily side by side. The sling length should be 4 times the diameter of the branch. Tree Guard slings are protected by an anti-abrasion cover and feature overload indicators on the...RIG354M- SKU:
- RIG354M
Our Price $25.40 - $30.28 -
Tree Guard Slings - 40 kN (4-ton)
Drayer
Our Price $33.93 - $40.01Tree Guard Slings Tree guard slings should be long enough to lay both eyes easily side by side. The sling length should be 4 times the diameter of the branch. Tree Guard slings are protected by an anti-abrasion cover and feature overload indicators on...RIG359M- SKU:
- RIG359M
Our Price $33.93 - $40.01 -
Tree Guard Slings - 80 kN (8-ton)
Drayer
Our Price $52.16 - $72.98Tree Guard SlingsTree guard slings should be long enough to lay both eyes easily side by side. The sling length should be 4 times the diameter of the branch. Tree Guard slings are protected by an anti-abrasion cover and feature overload indicators on the...RIG365M- SKU:
- RIG365M
Our Price $52.16 - $72.98 -
Tree Guard Slings -120 kN (12-ton)
Drayer
Our Price $55.71 - $83.80Tree Guard SlingsTree guard slings should be long enough to lay both eyes easily side by side. The sling length should be 4 times the diameter of the branch. Tree Guard slings are protected by an anti-abrasion cover and feature overload indicators on the...RIG372M- SKU:
- RIG372M
Our Price $55.71 - $83.80 -
Out of stock
Tree Guard Entry Kit
WesSpur
Our Price $699.00An excellent array of slings and rope to cover the most likely cabling situations, plus gear bag and wire splicing fid. Your Kit Will Contain: 20" 20 kN slings x 2 30" 20 kN slings x 4 30" 40 kN slings x 2 40" 40 kN slings x 2 50" 40 kN slings x 2...KIT43-1- SKU:
- KIT43-1
Our Price $699.00 -
Tree Guard Rope for Dynamic Cabling
Drayer
Our Price $1.00 - $2.66Tree Guard RopeTree Guard rope comes in two different elasticities, either 5% or 20%, which allows cabling systems to be better-customized according to the specific needs of the individual tree. Because it uses slings, Tree Guard does not place the line...ROP2TGM- SKU:
- ROP2TGM
Our Price $1.00 - $2.66

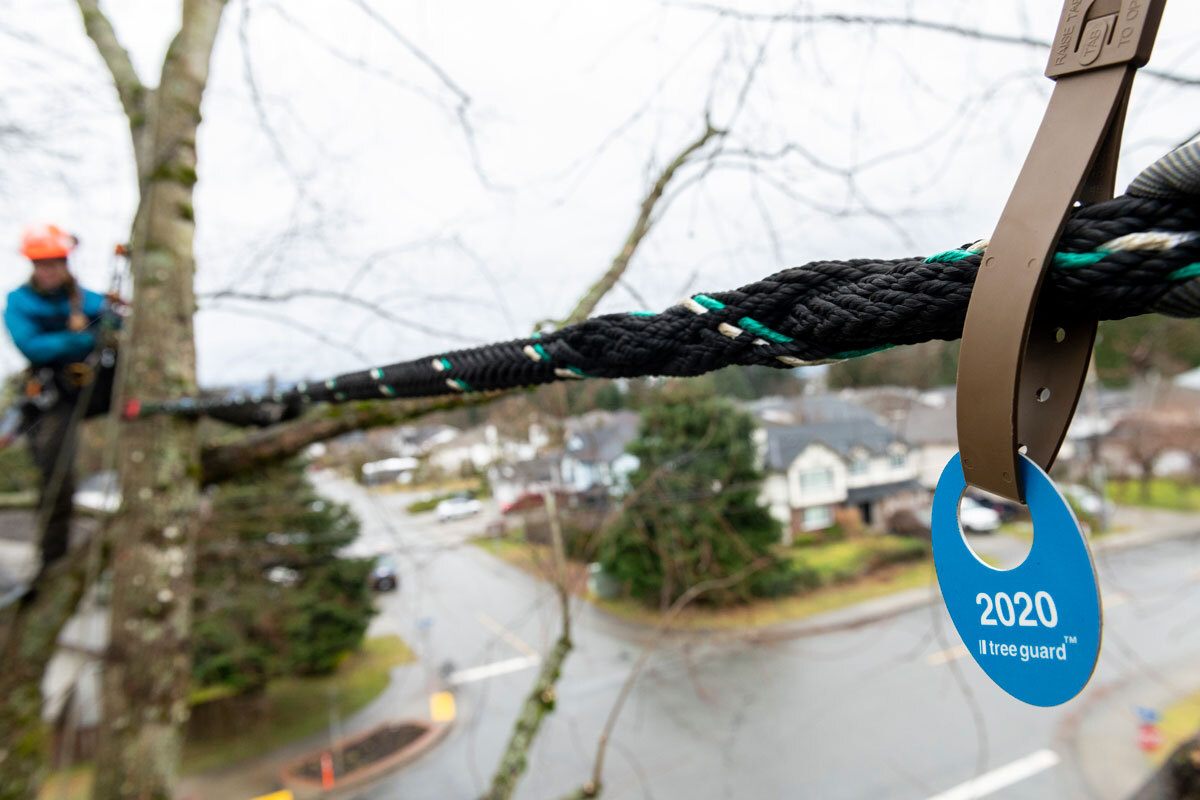

Tree Guard noninvasive cabling system supports trees by flexing as the tree moves in wind or under ice and snow. Overload indicators on slings become visible when the system is stressed, a major improvement over static steel cables that can fail without warning. Easy to install and inspect.
Non-invasive Dynamic Cabling
Tree Guard installs via slings wrapped around stems, with no drilling required, preserving tree integrity and allowing easier inspection due to visible overload indicators when the load exceeds 75%.
Benefits of the Tree Guard System
- No drilling that could damage the tree
- Dynamic material reacts to stress
- Simple 12-strand splice installation
- Overload indicators on 20 kN, 40 kN, & 80 kN slings
- Effective life of at least 8 years
Tree Guard Rope
Available in 5% or 20% elasticity, Tree Guard rope prevents the eye splice from being forced open as the tree grows.
| Diameter | Tensile Strength | Elongation |
|---|---|---|
| 14mm | 20 kN (4,496 lb) | 5% (green) or 20% (blue tracer) |
| 18mm | 40 kN (9,000 lb) | 5% (green) or 20% (blue tracer) |
| 26mm | 80 kN (18,000 lb) | 5% (green) or 20% (blue tracer) |
Note: Tree Guard comes in 100m / 328’ lengths. Specify minimum lengths when ordering if needed.
Tree Guard Slings
Slings should be 4 times the branch diameter, with overload indicators on 20 kN, 40 kN, and 80 kN slings. No indicators are present on 120 kN slings.
Tree Guard Cabling Features & Installation Video
