Shoulder Shot Line Launcher

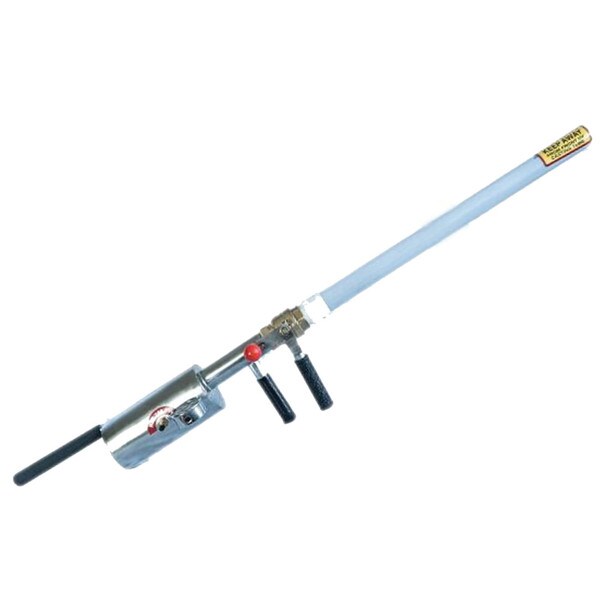

The Shoulder Shot Tree Toppler is an air-powered throw line-launcher which launches a 12oz throw bag with power and precision.

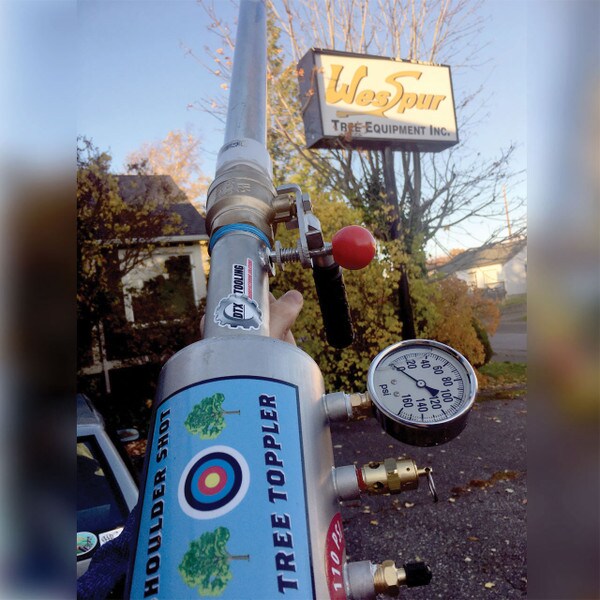

The launcher is intuitive to aim and use. The air container can be pressurized up to 125 PSI, and this controls the vertical distance launched. Once pressurized, the launcher is mounted and aimed from the shoulder, and activated by turning the release handle. The Shoulder Shot works best using a 12oz throw bag, and can be used with arborist throw lines or tied directly to 11mm (7/16") ropes.

PSI To Vertical Distance Chart (with throw line and 12oz Throw Bag):

• 25 PSI - 25 Vertical Feet
• 50 PSI - 50 Vertical Feet
• 75 PSI - 100 Vertical Feet
• 100 PSI - 175 Vertical Feet
• 125 PSI - 200 Vertical Feet

PSI To Vertical Distance Chart (with throw bag and 11mm / 7/16" rope):

• 100 PSI - 100 Vertical Feet

Safety Checklist

1. Make sure the Shoulder Shot Tree Toppler is assembled correctly
2. Have crew discussion about use and clearance points, and the direction of launch
3. Make sure crew is aware of surroundings, and has properly signaled that the device is about to be activated
4. Refer to distance chart for correct device activation protocol, and psi levels
5. Inspect Bullet/Bean Bag for damage or dirt, and clean as necessary
6. Inspect reel for any sign of damage
7. Tie, and check knot attaching the Bullet/Bean Bag to the reel attachment
8. Be certain at this point that the locking feature is in the locked position

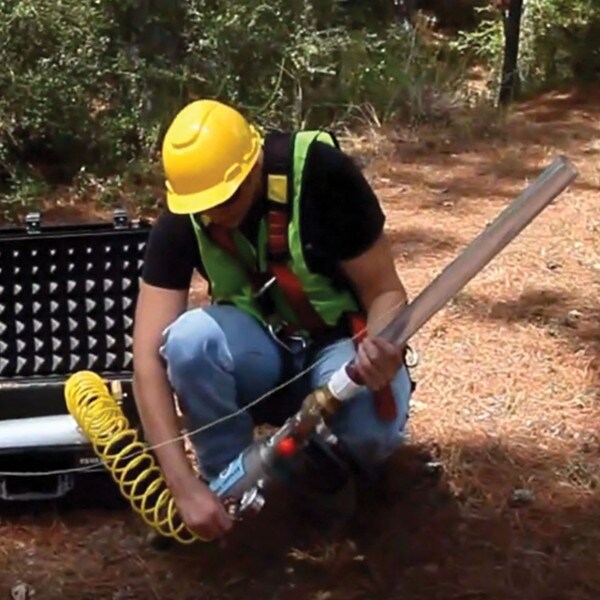

9. Insert the Bullet/Bean bag back end first (string end first) into the clear PVC barrel
10. Be sure the Bullet/Bean bag has slid down the entire length of the barrel
11. Verbally announce preparation for activating the device

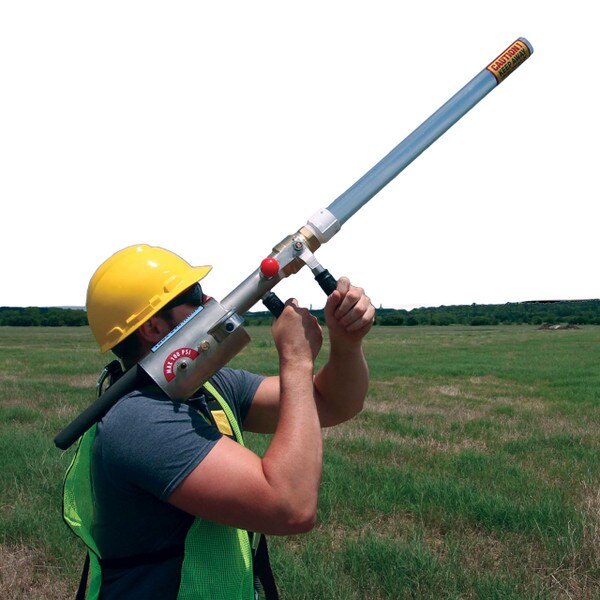

12. Set the Tree Toppler firmly, and comfortably on the shoulder of the personnel activating the device
13. Check for clearance of the desired target, and reel attachment bail has been opened
14. Move the locking feature to the unlocked position
15. Hold firmly, engage the release handle, and fire the Shoulder Shot Tree Toppler
