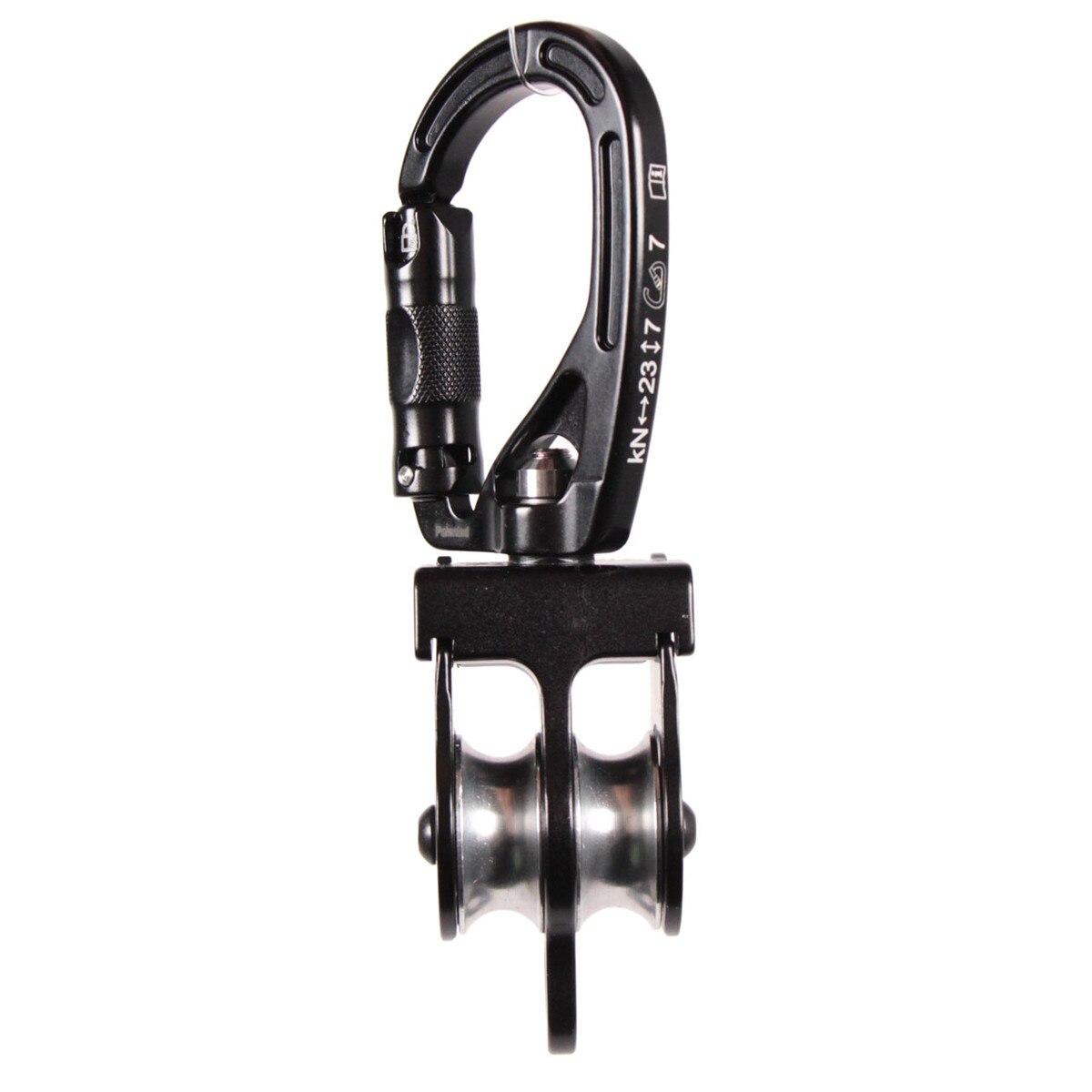

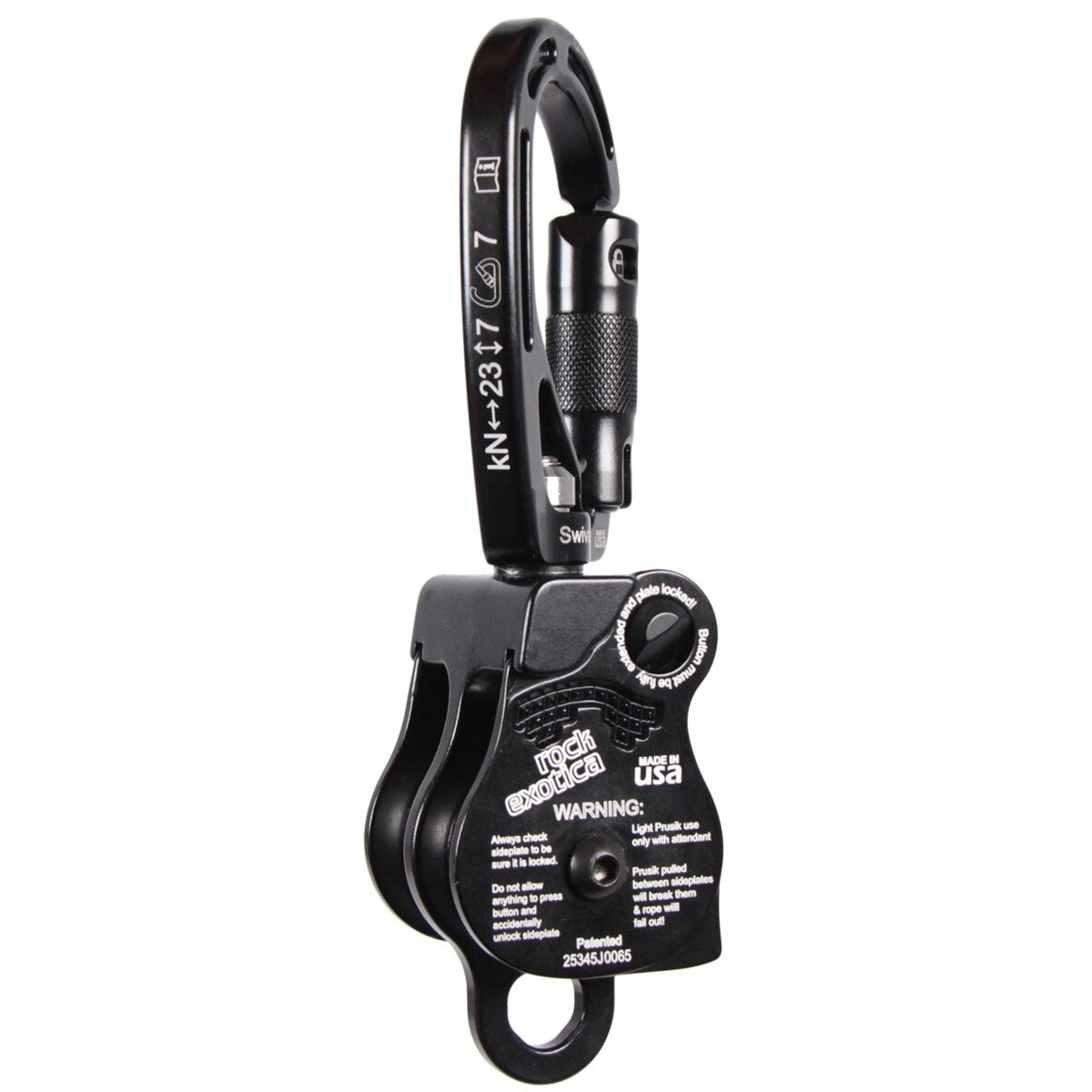

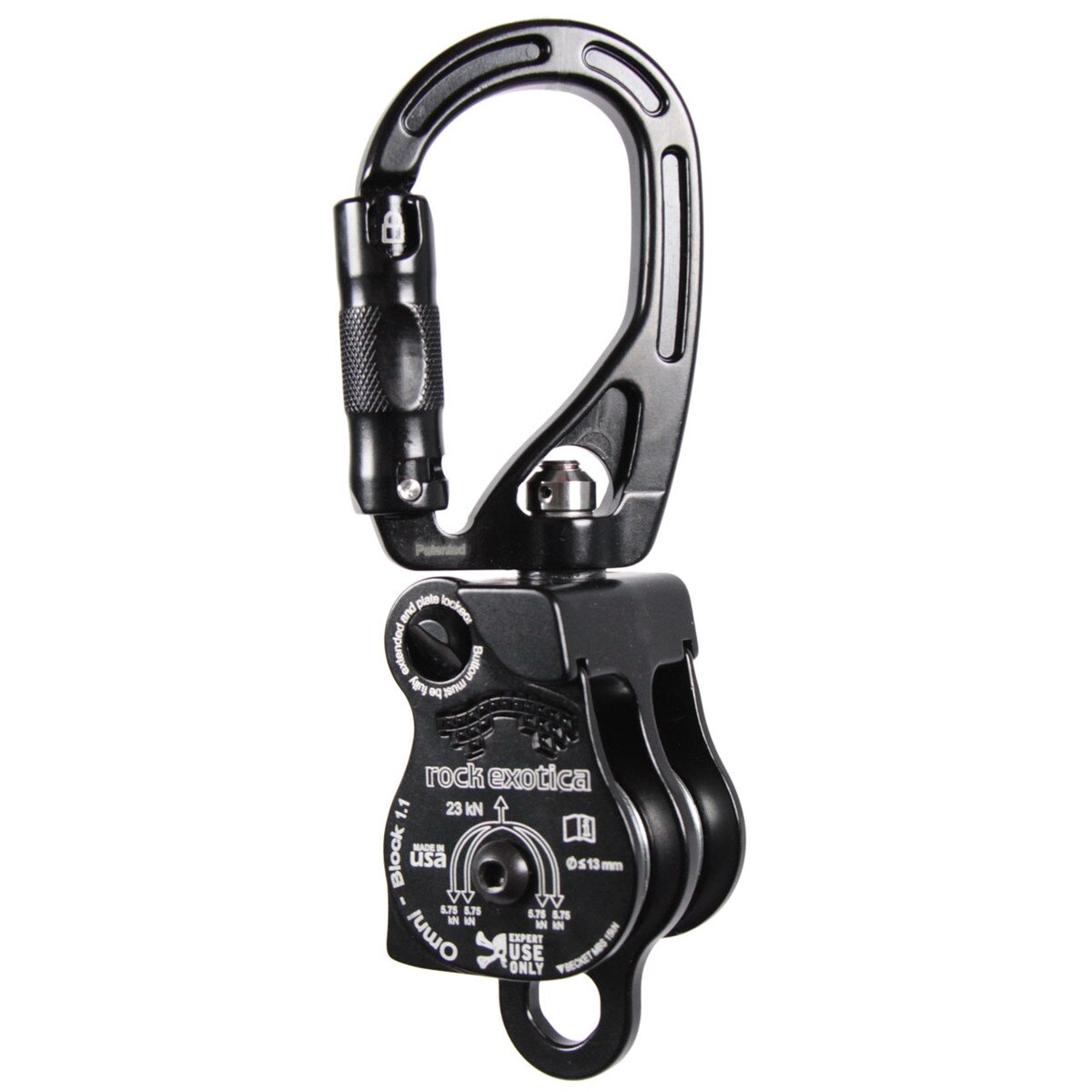

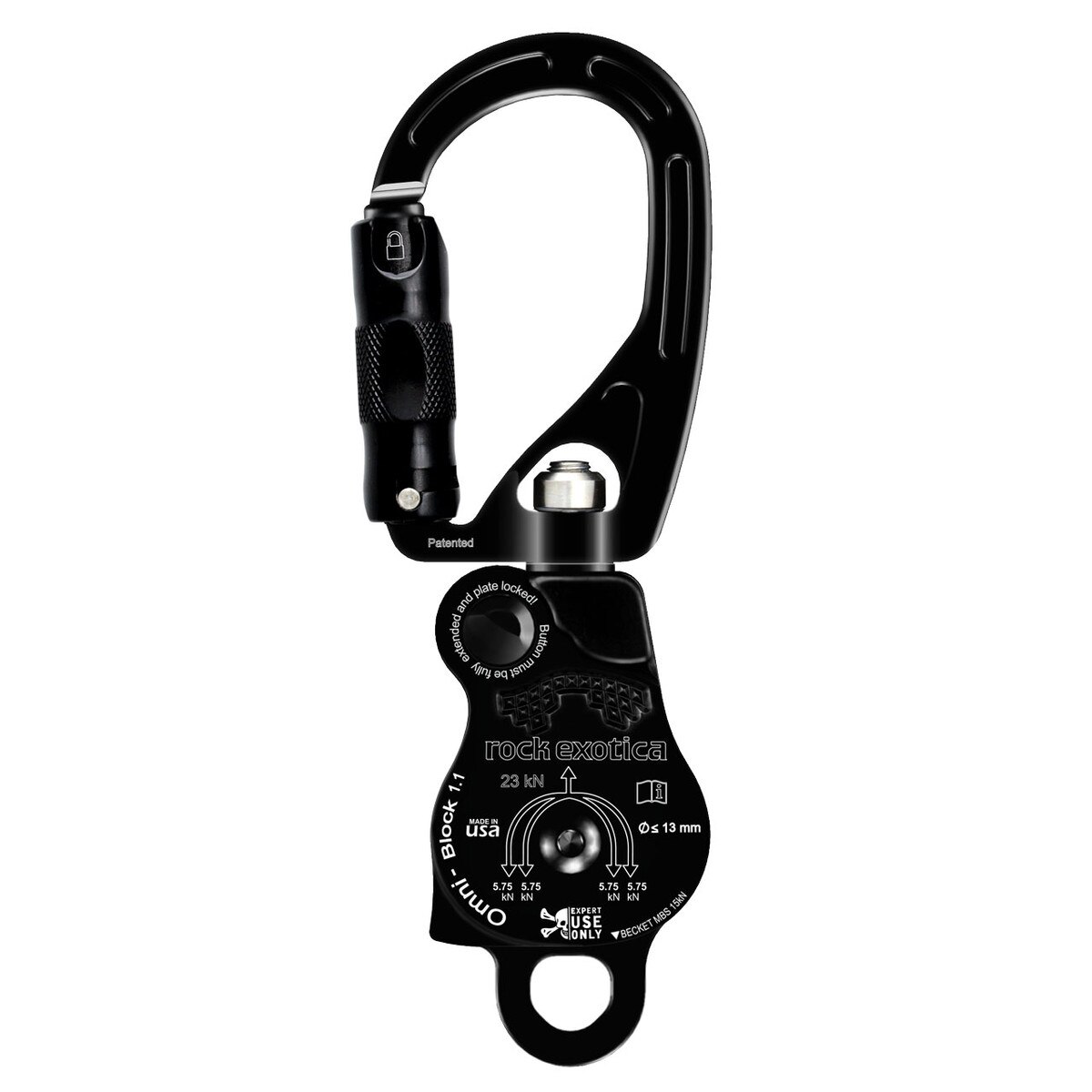

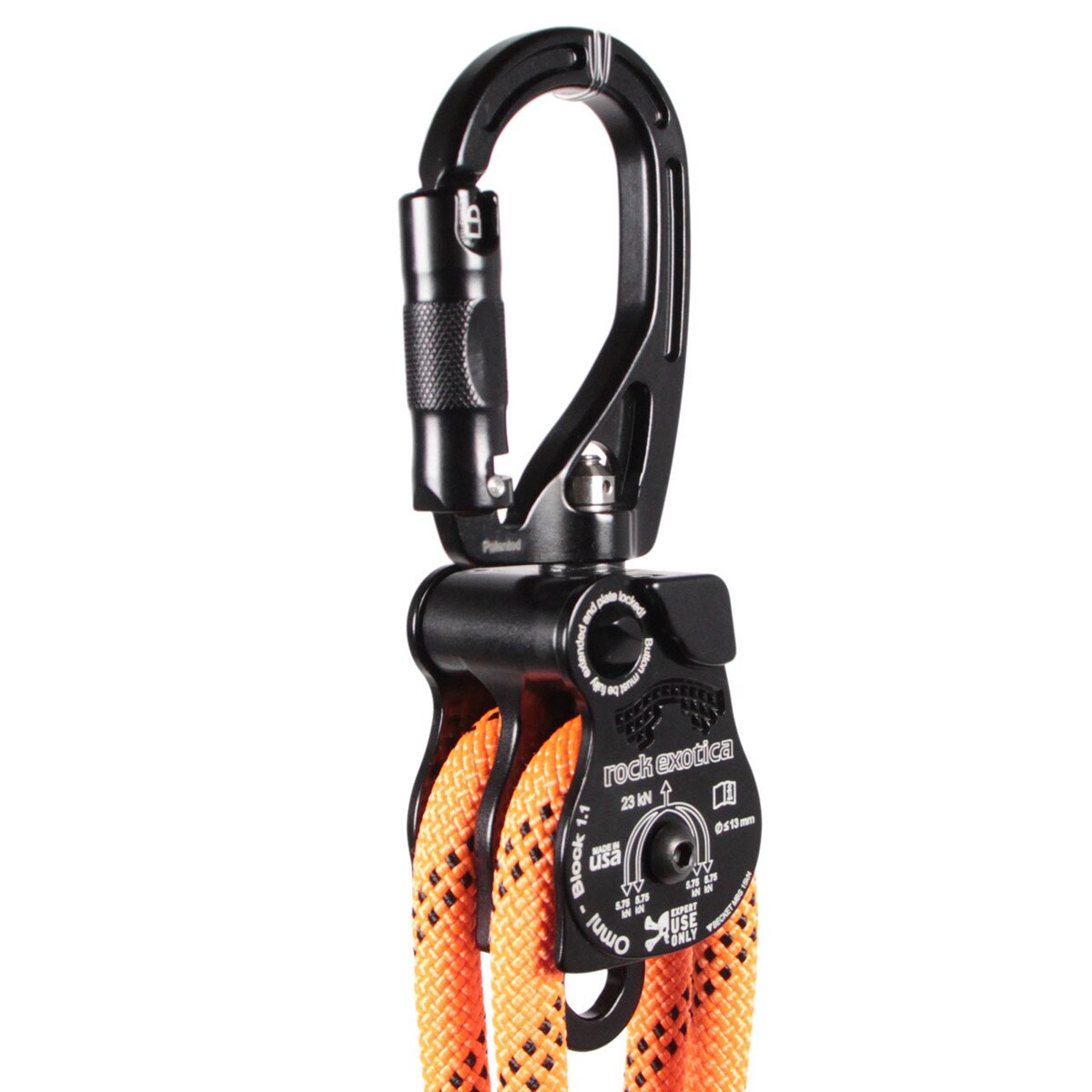

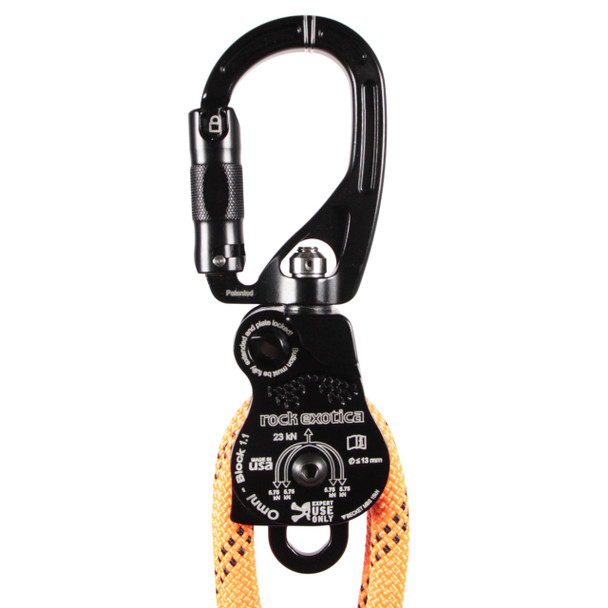

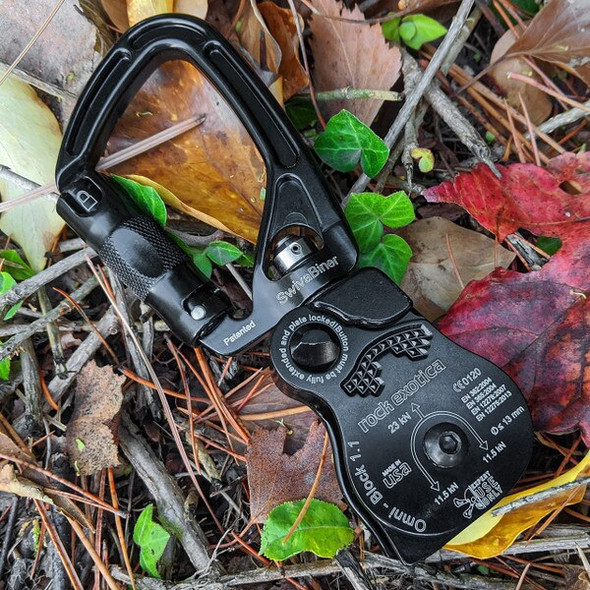

Omni SwivaBiner Oval - Double

The Omni-Block SwivaBiner combines a swiveling carabiner and pulley into one tool, and incorporates a unique sideplate that opens while the pulley is still attached to the anchor. The Omni Swivabiner is available in both single and double sheave versions.

Specifications

• Max rope diameter: 13 mm (0.5 in)
• Minimum breaking strength (MBS): 23 kN (single), 28 kN (double)
• Working load limit (WLL): 5 kN (single), 7 kN (double)
• Height: 112 mm (4.4 in) single; 182 mm (7.2 in) double
• Width: 51 mm (2.0 in) for both single and double
• Weight: 140 g (4.9 oz) single; 300 g (10.5 oz) double
• Minor axis MBS: 7 kN (single and double)
• Becket MBS: 15 kN (double sheave only)
• Gate opening: 22 mm (0.88 in) SwivaBiner D; 21 mm (0.83 in) SwivaBiner O
• Certification: CE; conforms to EN 362:2004/B, EN 12275:2013/B, EN 12278:2007
