Buckingham

Buckingham Ox Block

(No reviews yet) Write a Review
SKU:
PUL218
MPN:
50061
Availability:
SPECIAL ORDER ITEM, LEAD TIME VARIES
Our Price $745.00
Frequently bought together:

Description

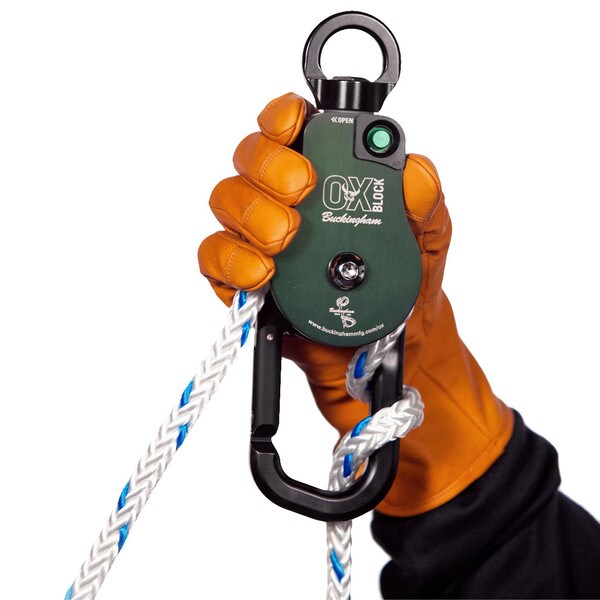

The Buckingham OX BLOCK is a rope snatch block with an integrated friction bar used for lowering loads, snubbing loads, and raising loads. It allows the rigging professional to handle loads with greater control. When lowering loads, tension is transferred from the worker to the OX BLOCK. The OX BLOCK replaces standard handline blocks, parted blocks, and various snatch blocks. The OX BLOCK also has greater Working Load Limits than blocks of similar size.

Check out the OX BLOCK manual on the Safety & Technical tab, and the videos on the video tab to get more information and see the OX BLOCK in use.

Features & Benefits

  • Raise loads
  • Lower loads
  • Snub loads
  • Easily add friction
  • Robust design and WLL

Specifications

  • Length: 10.5"?
  • Width: 2"?
  • Sheave Diameter: 3"?
  • Gate Opening Capacity: 1.5"?
  • Weight: 2.15 lbs.
  • HOOK TO EYE: MBS:6,000 lbs (WLL: 1,500 lbf)
  • SHEAVE TO EYE:MBS: 10,000 lbs (WLL:2,500 lbf)
View AllClose

Videos

View AllClose

Warranty Information

Buckingham Manufacturing guarantees the equipment it manufactures will be free from defects in materials and workmanship, and will repair equipment deemed defective when returned by the original purchaser. The guarantee is void if the product is altered or used for anything other than its intended purpose.
