Description

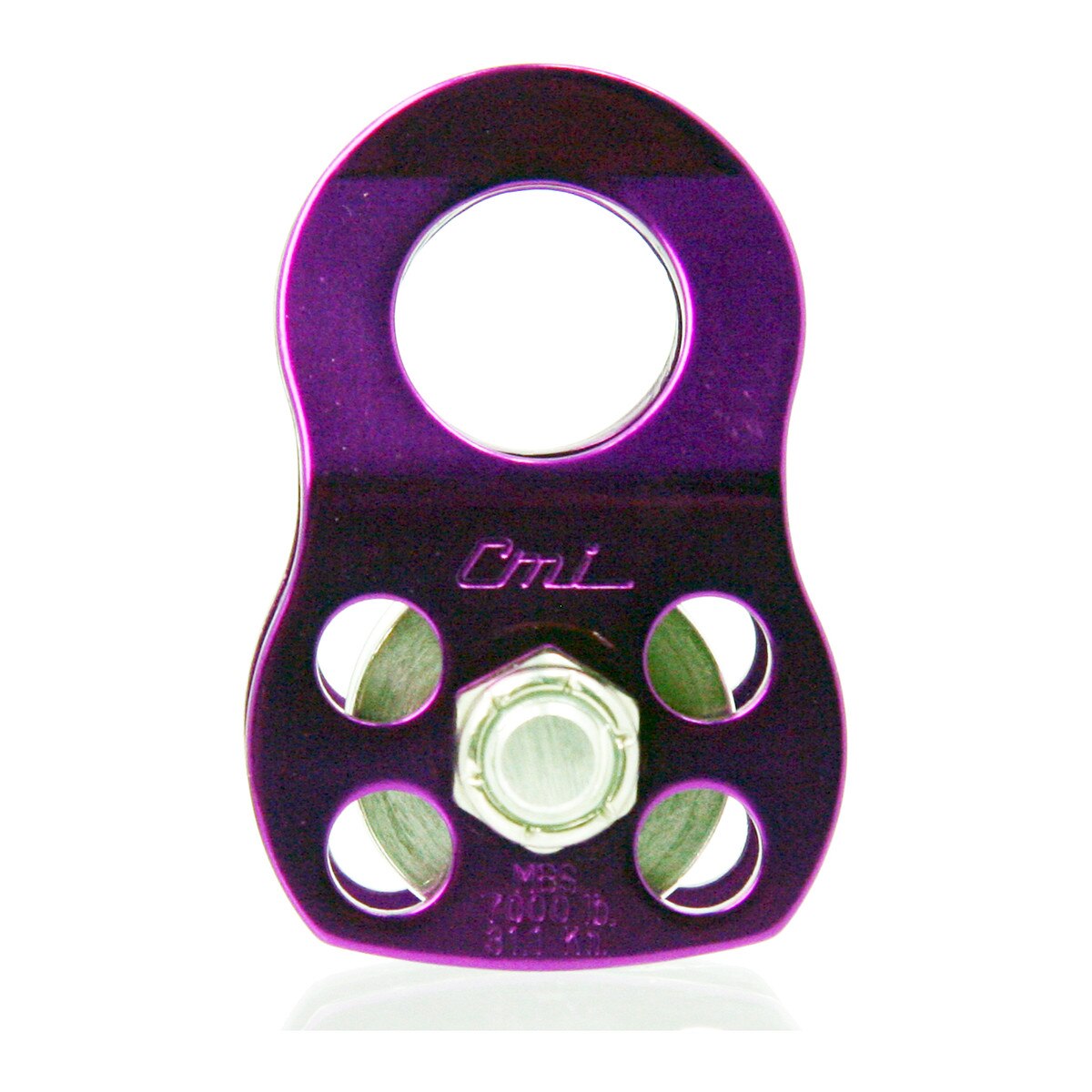

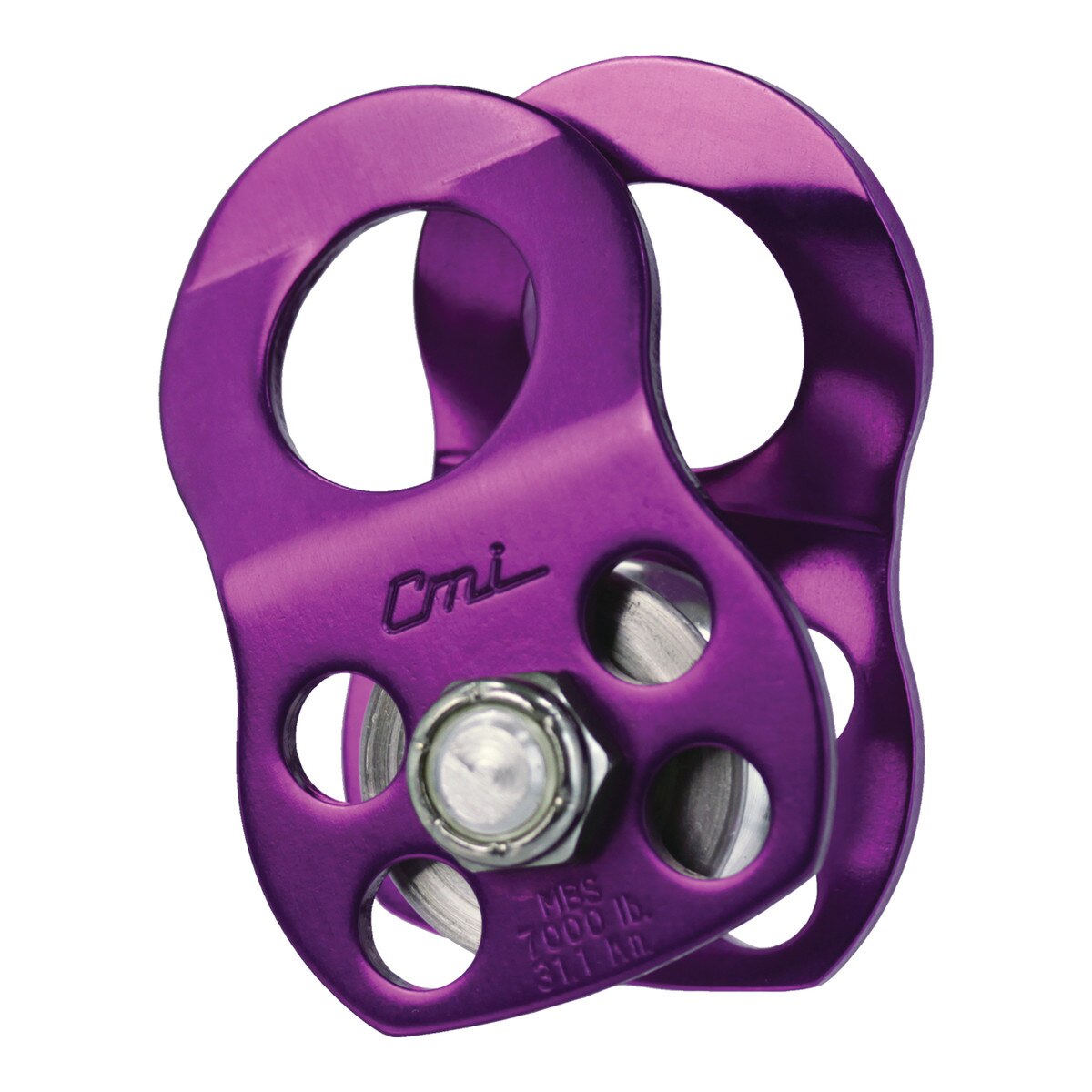

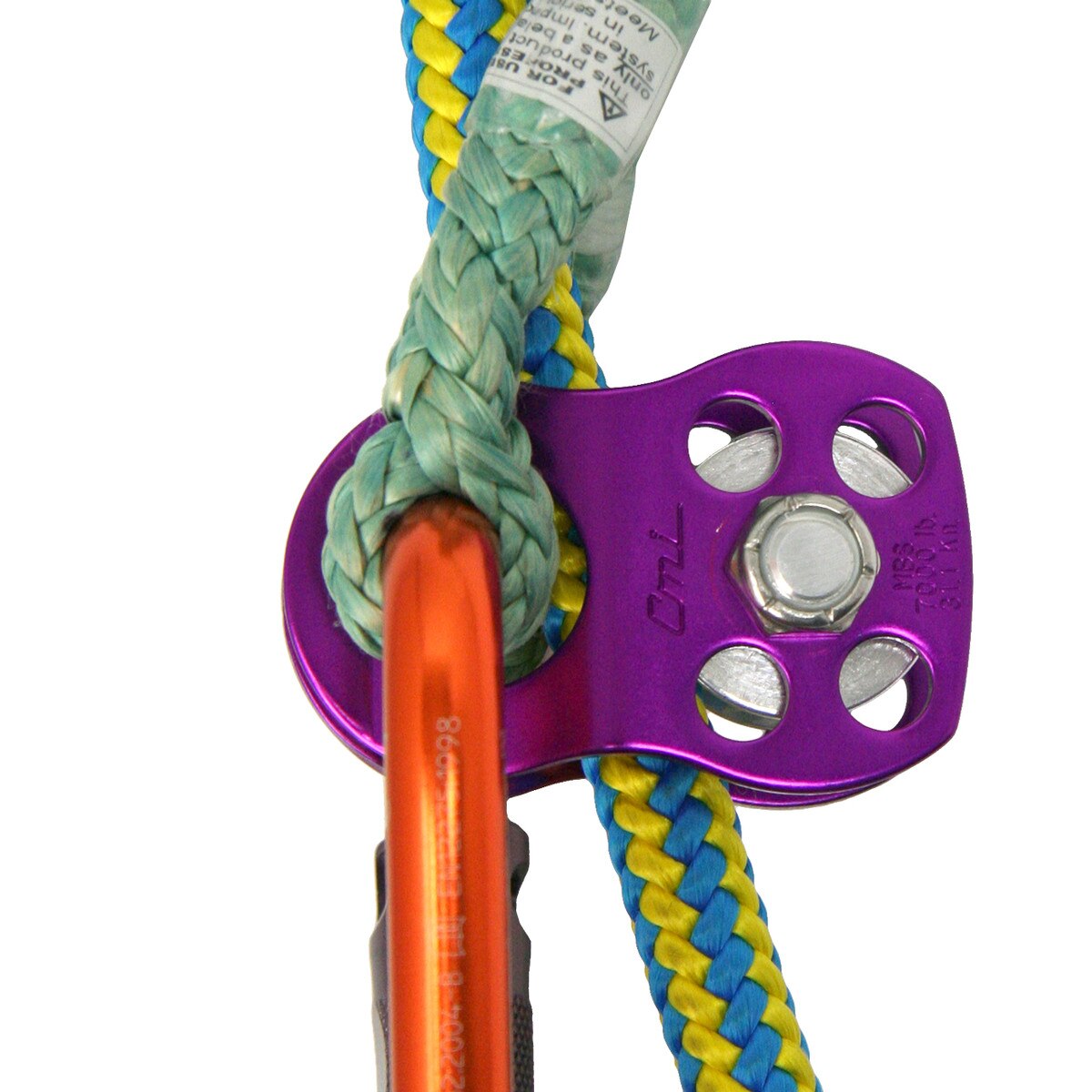

This little purple micro pulley from CMI is one of the most popular items we have. A perfect slack-tending pulley for your friction hitch. Swinging side plates for midline installation, a stainless steel axle, and high strength make this a great all around pulley for your tool bag.
Brk Str 31.1 kN (7,000 lb) • Max Rope 13mm (1/2"+) • Dimensions 2.75" x 1.85" • weighs 2.4oz
- Manufacturer : CMI
- Made in : USA
- Break Strength : 7,000 lb
- 5:1 WLL : 1,400 lb
- Max Rope Size : 1/2" (12.7mm)
- Side Plates : Aluminum
- Sheave : 1 1/4" Aluminum on bushing
- Axle : Stainless Steel
- Efficiency : 84.1%
- Weighs : 2.4 oz (69 g)
- Height : 2.75" (7 cm)
- Width : 1.85" (4.7 cm)
