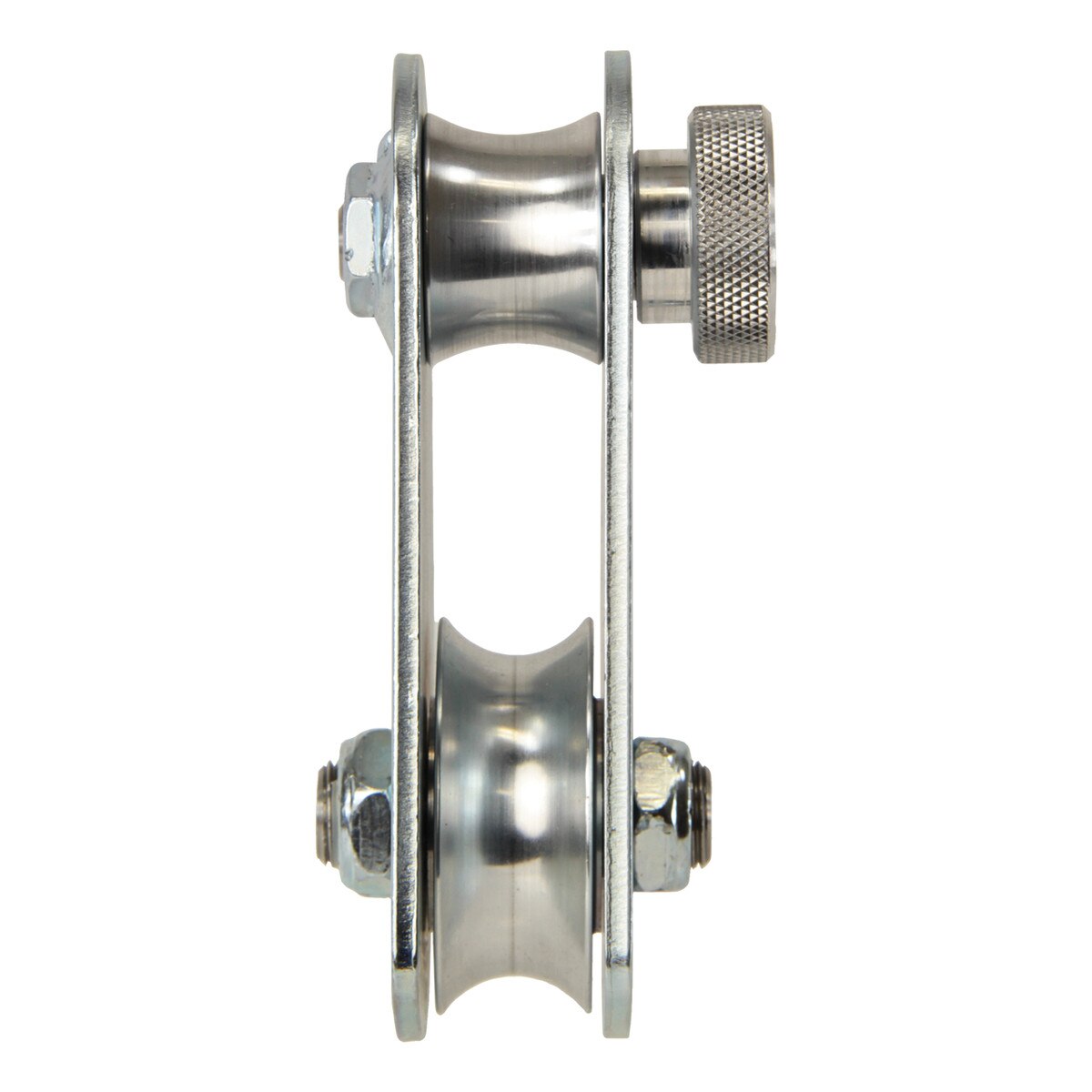

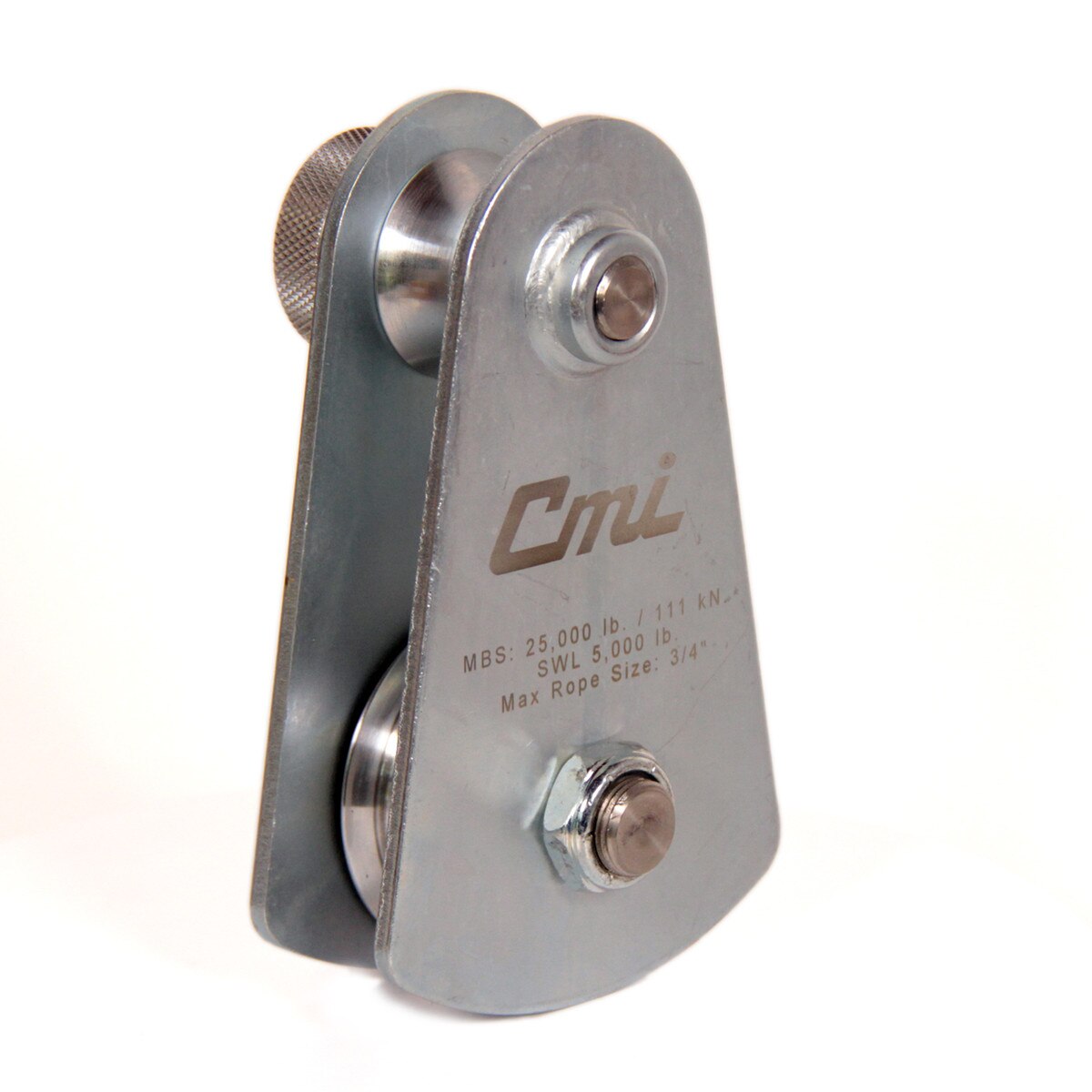

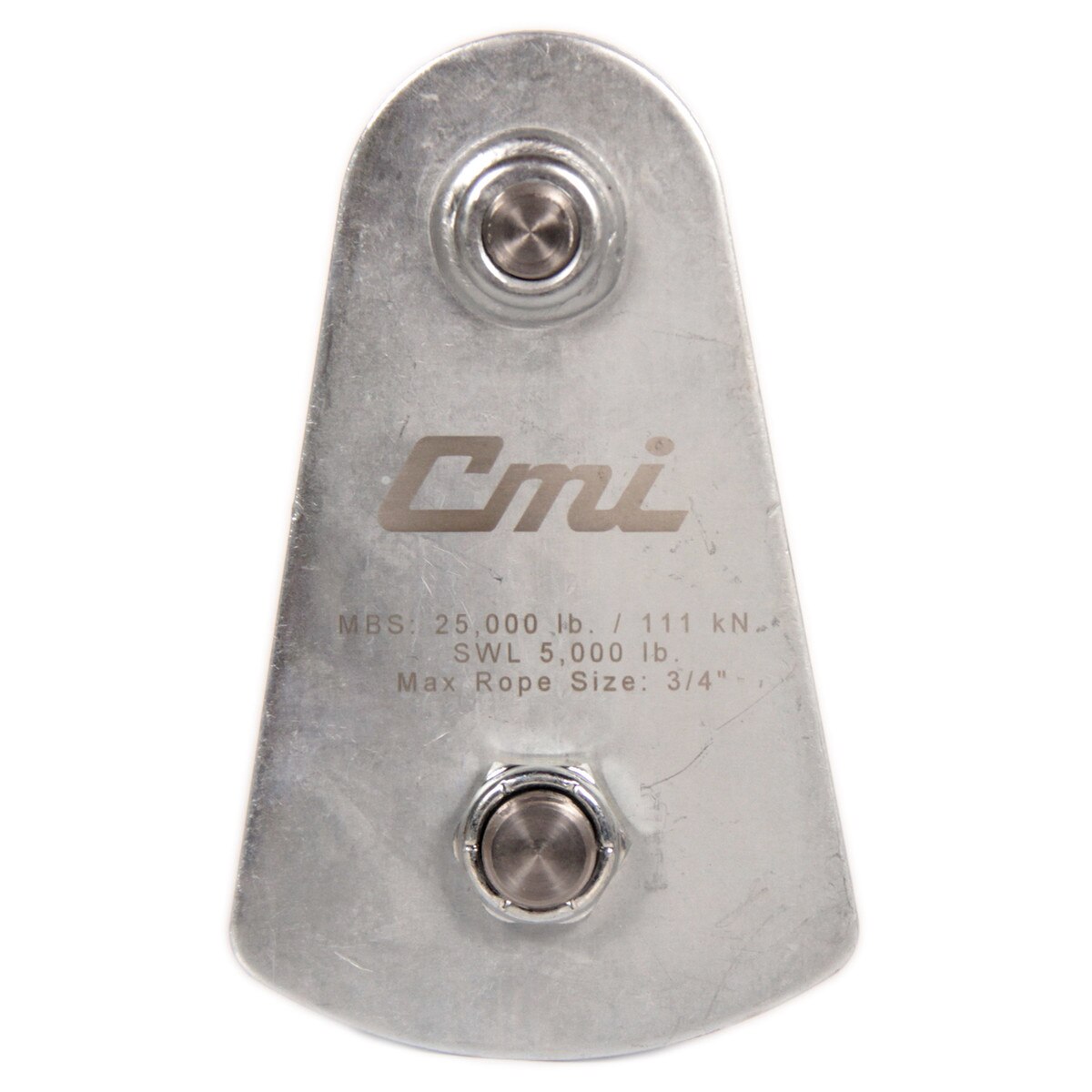

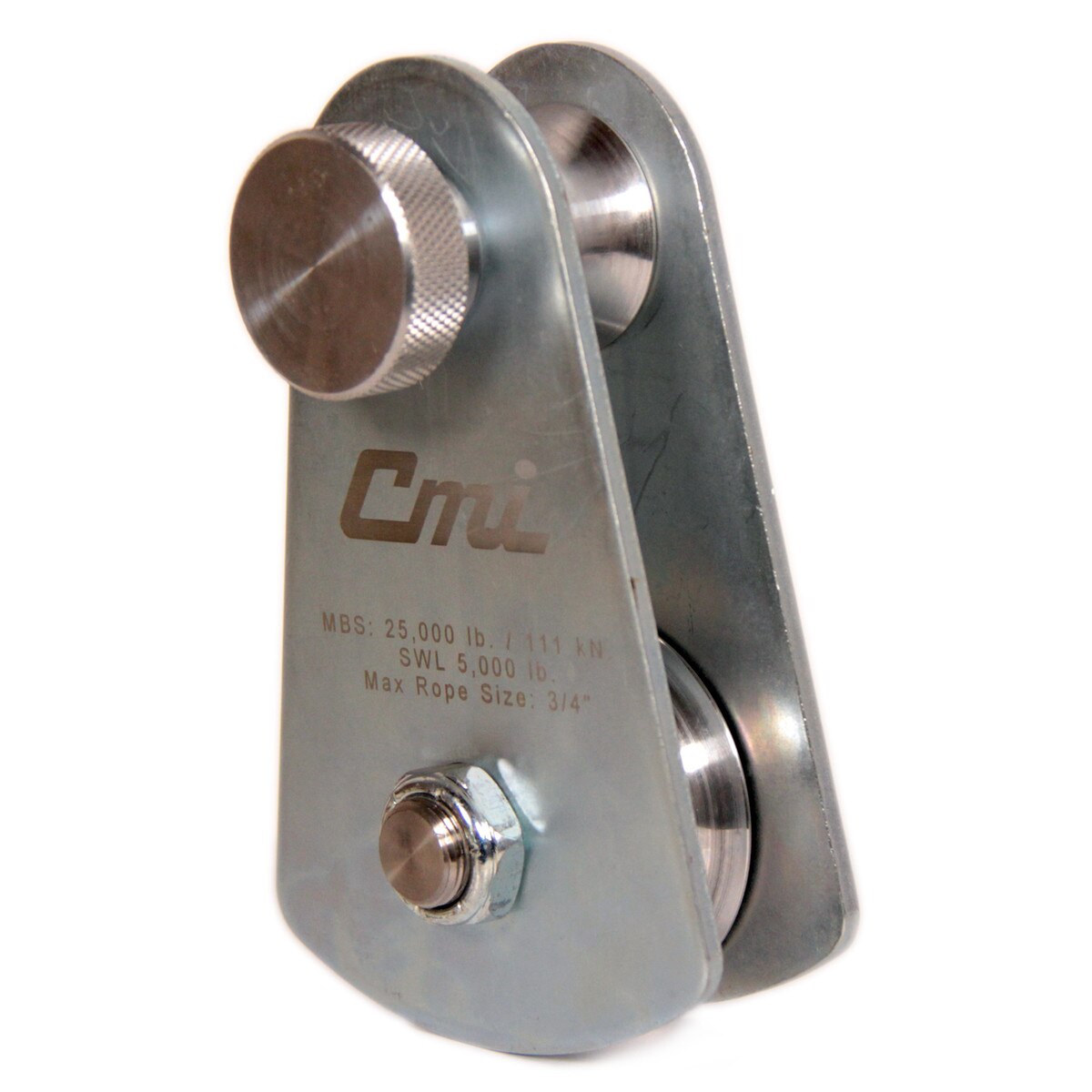

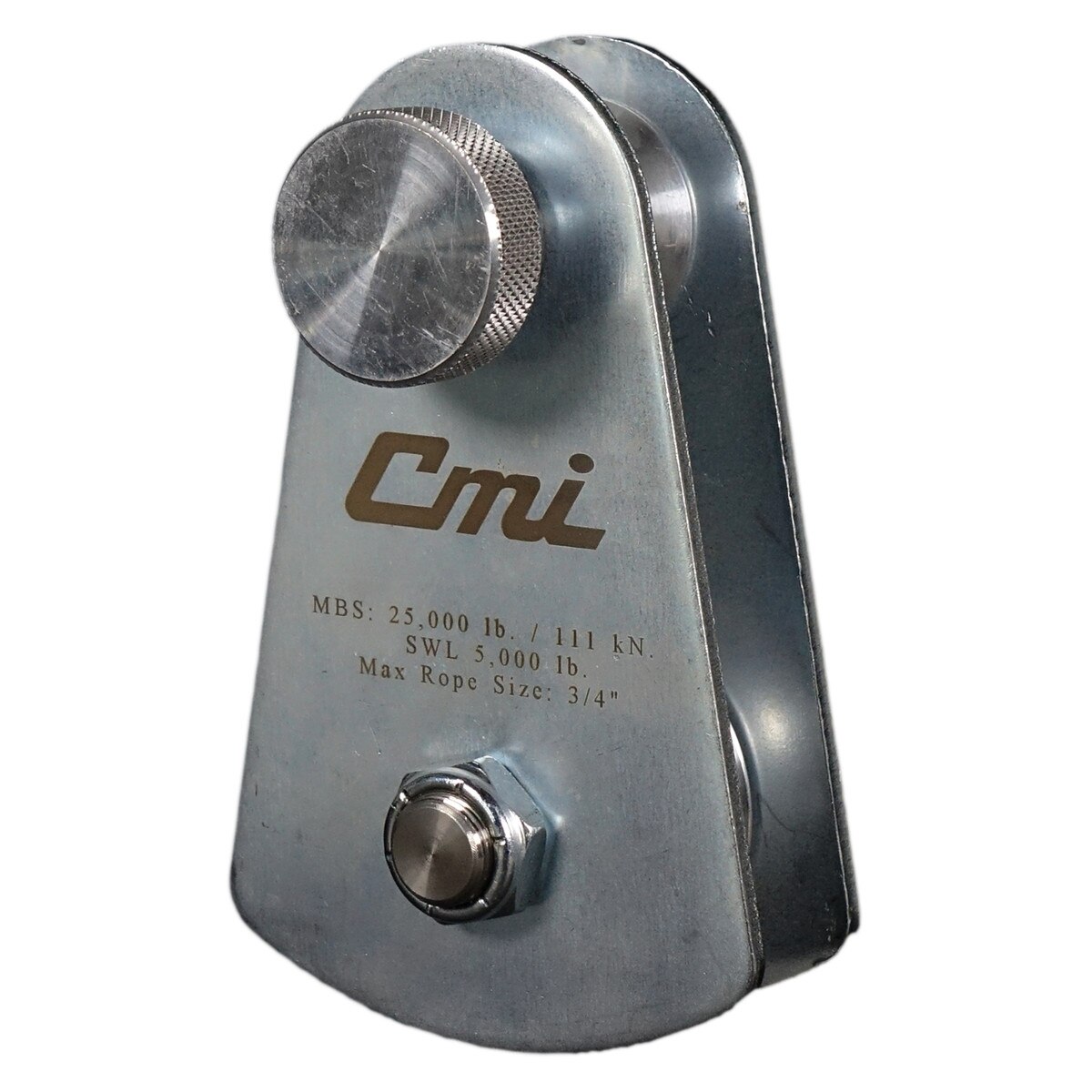

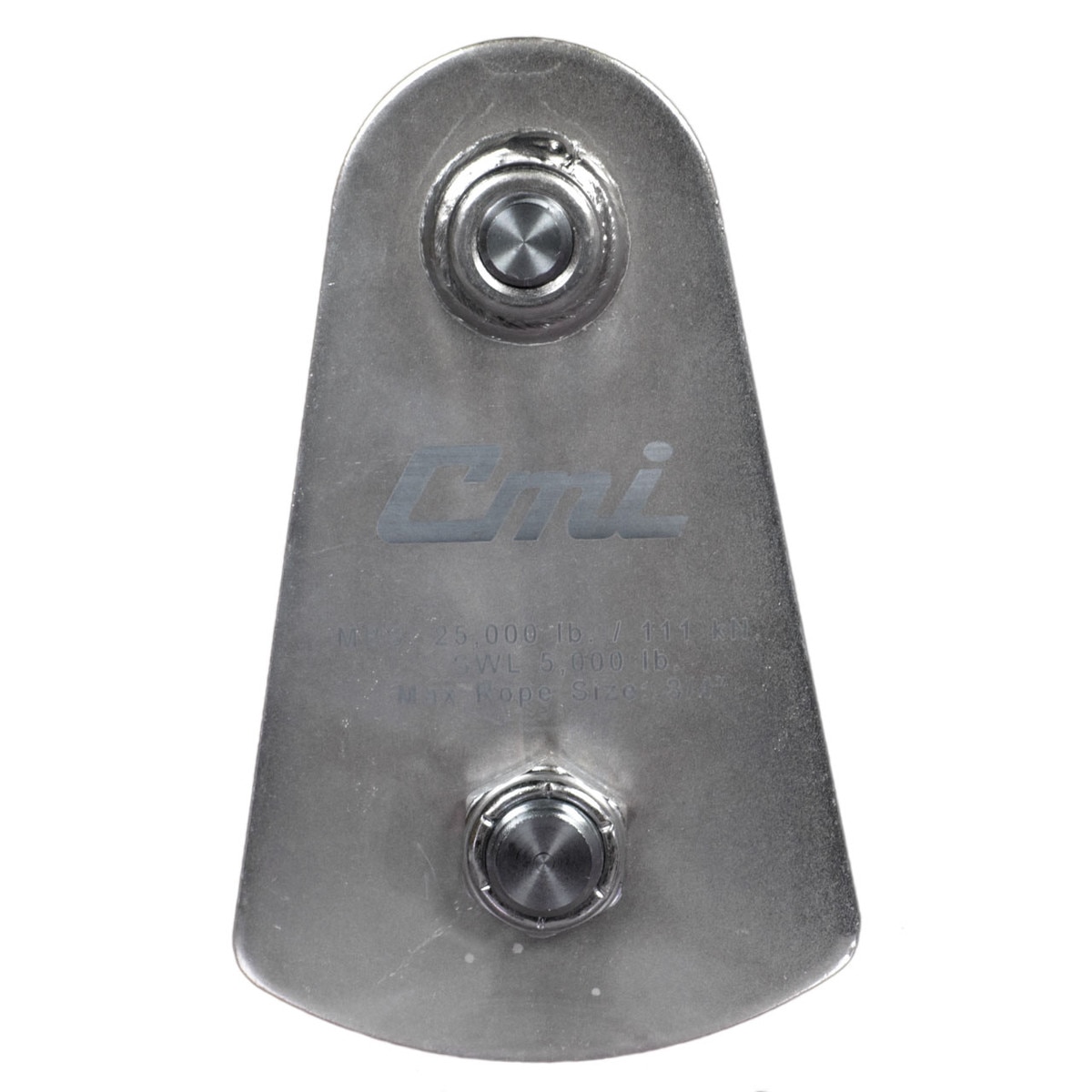

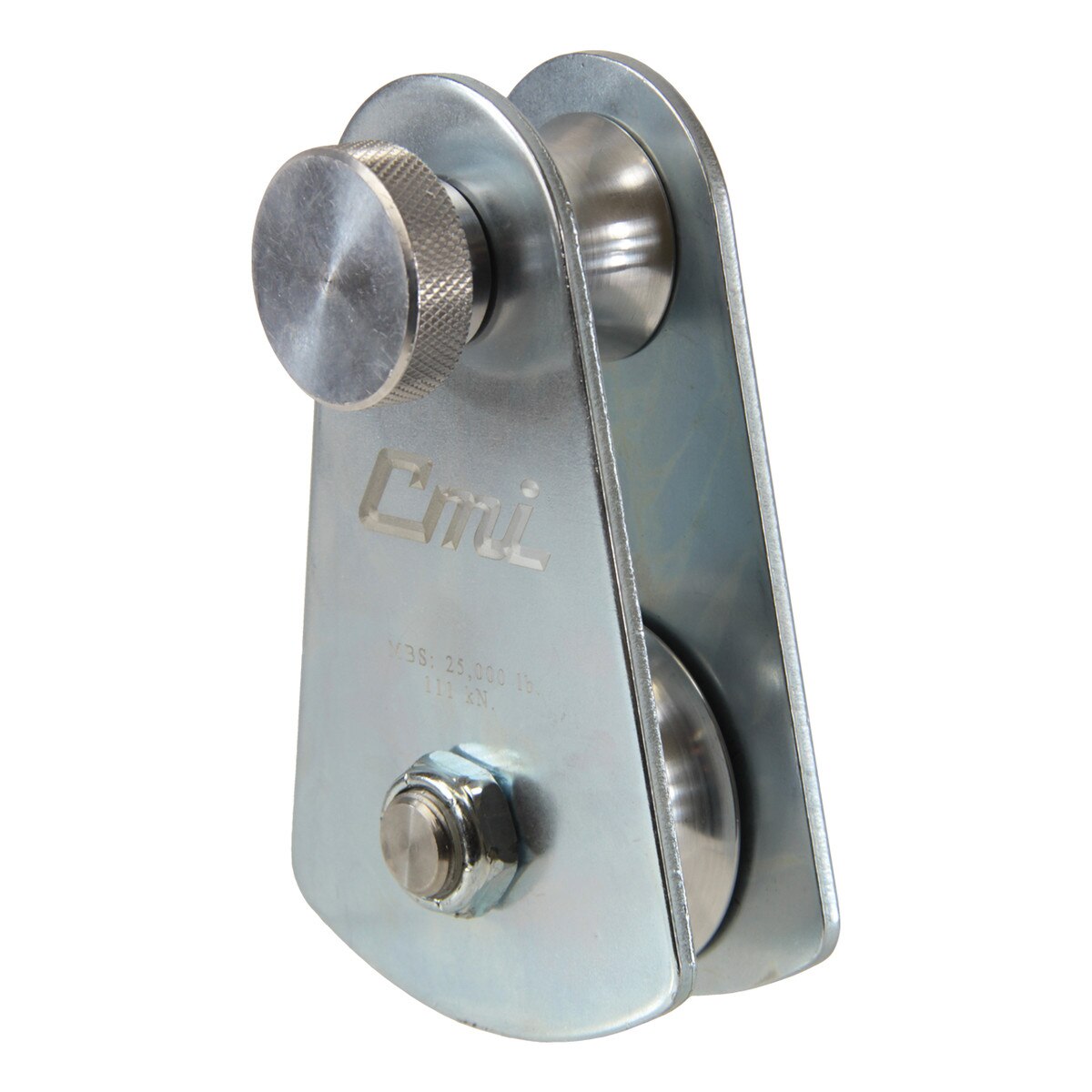

CMI Steel Rigging Block - 3/4"

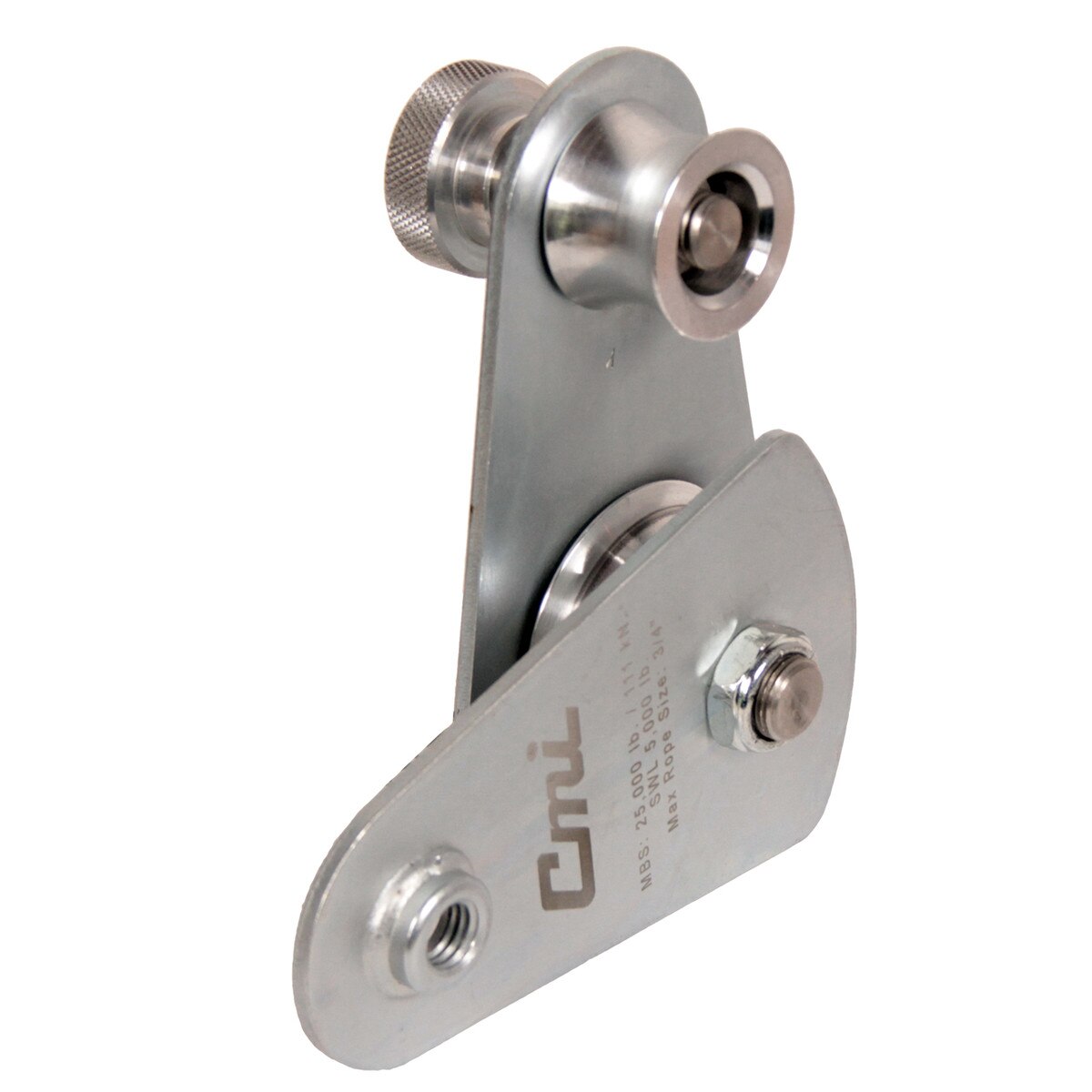

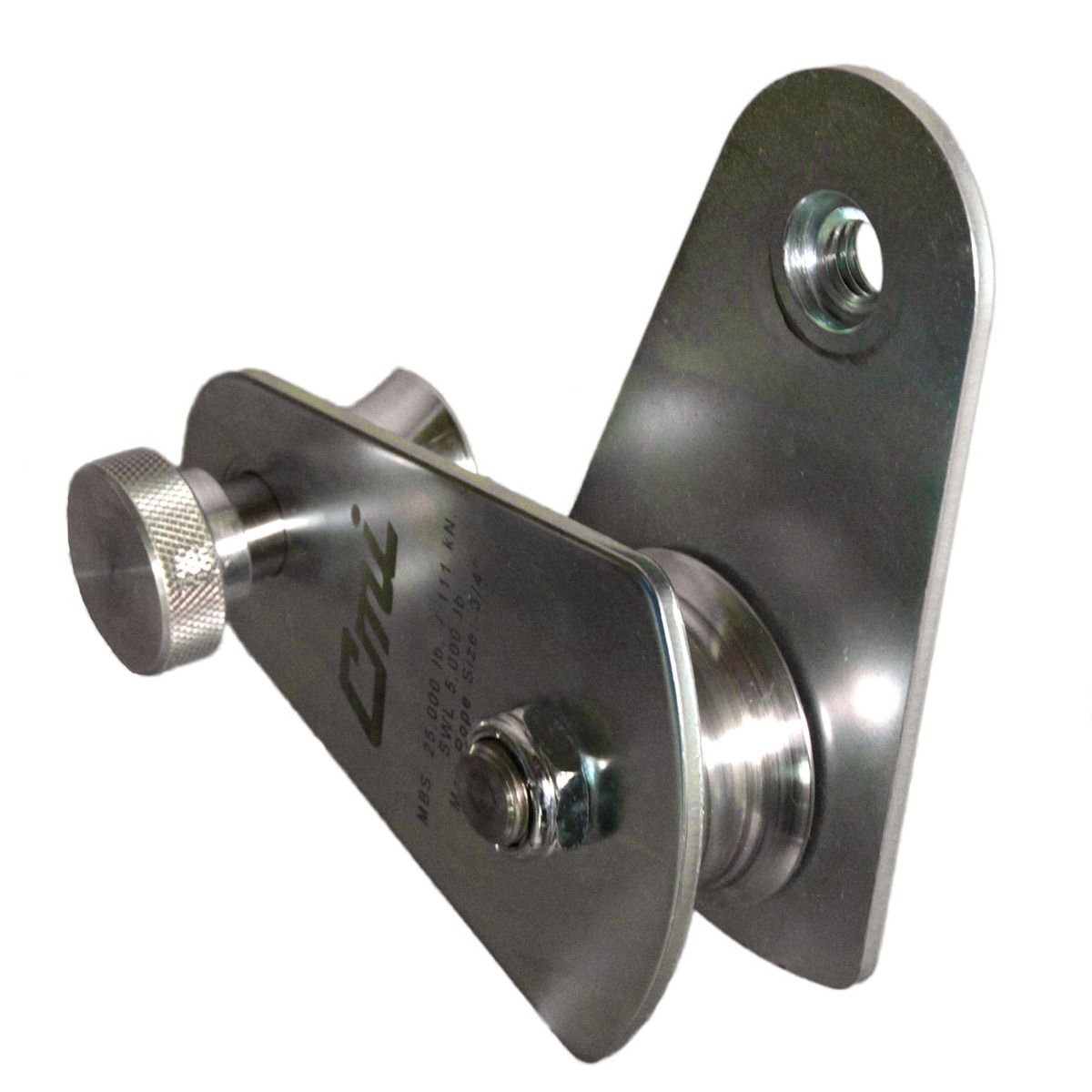

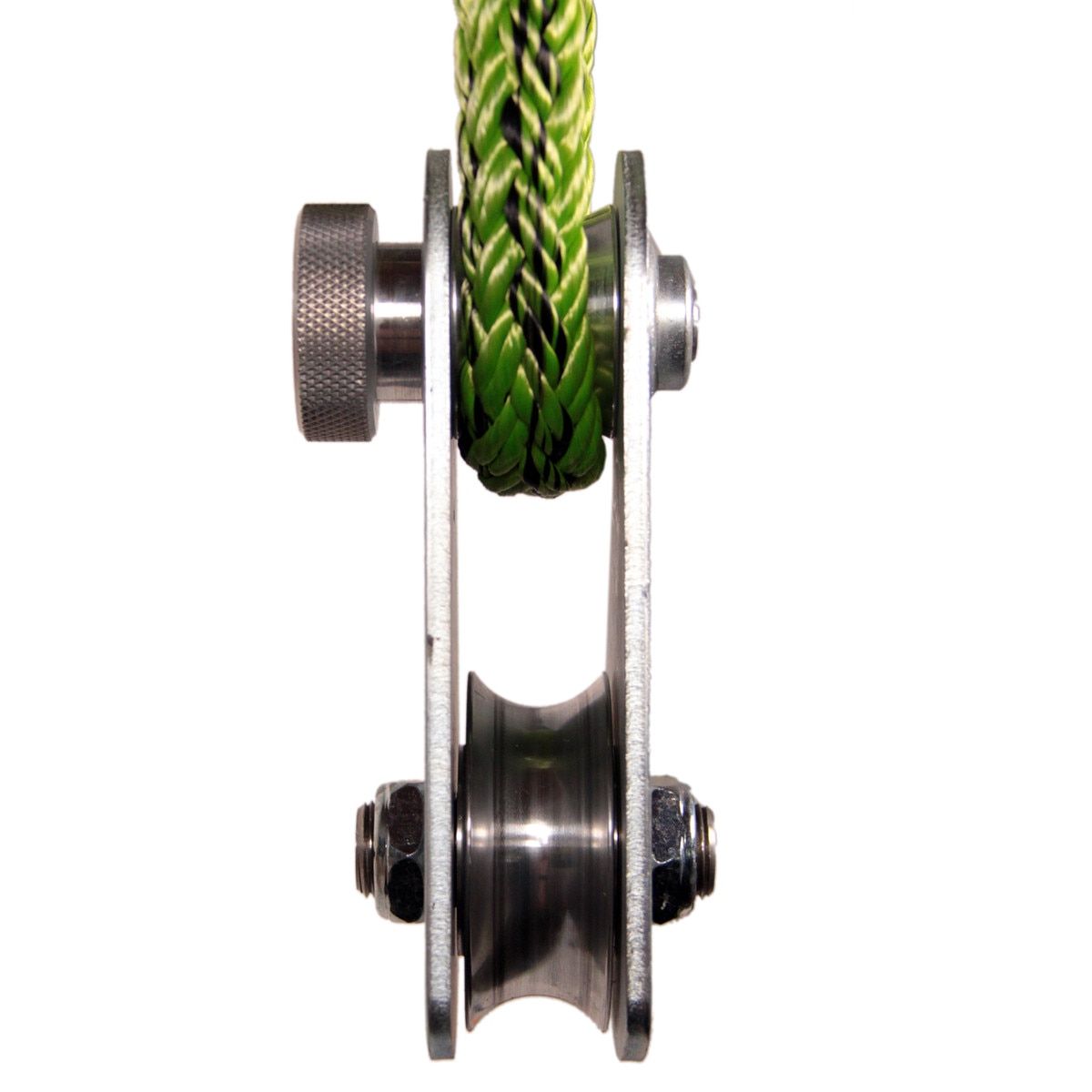

This arborist block from CMI is a simple, robust rigging block for tree removals. The steel arborist block is very basic in design so it can be offered at a very affordable price. The block has a respectable minimum breaking strength (MBS) of 25,000 lb. The upper sheave and screw are retained when the side-plates are opened to install a rigging sling, which eliminates the possibility of a dropped sheave or screw. The block accepts rigging ropes of up to 3/4" diameter, and tree rigging slings up to 3/4" .

There are other arborist blocks with more advanced features or more polished design, but the basic CMI 3/4" steel arborist block is a great value for the money.

Note: With this style of block, care must be taken that the relatively sharp side plates do not contact the rope.

• Features & Benefits:
• Affordable

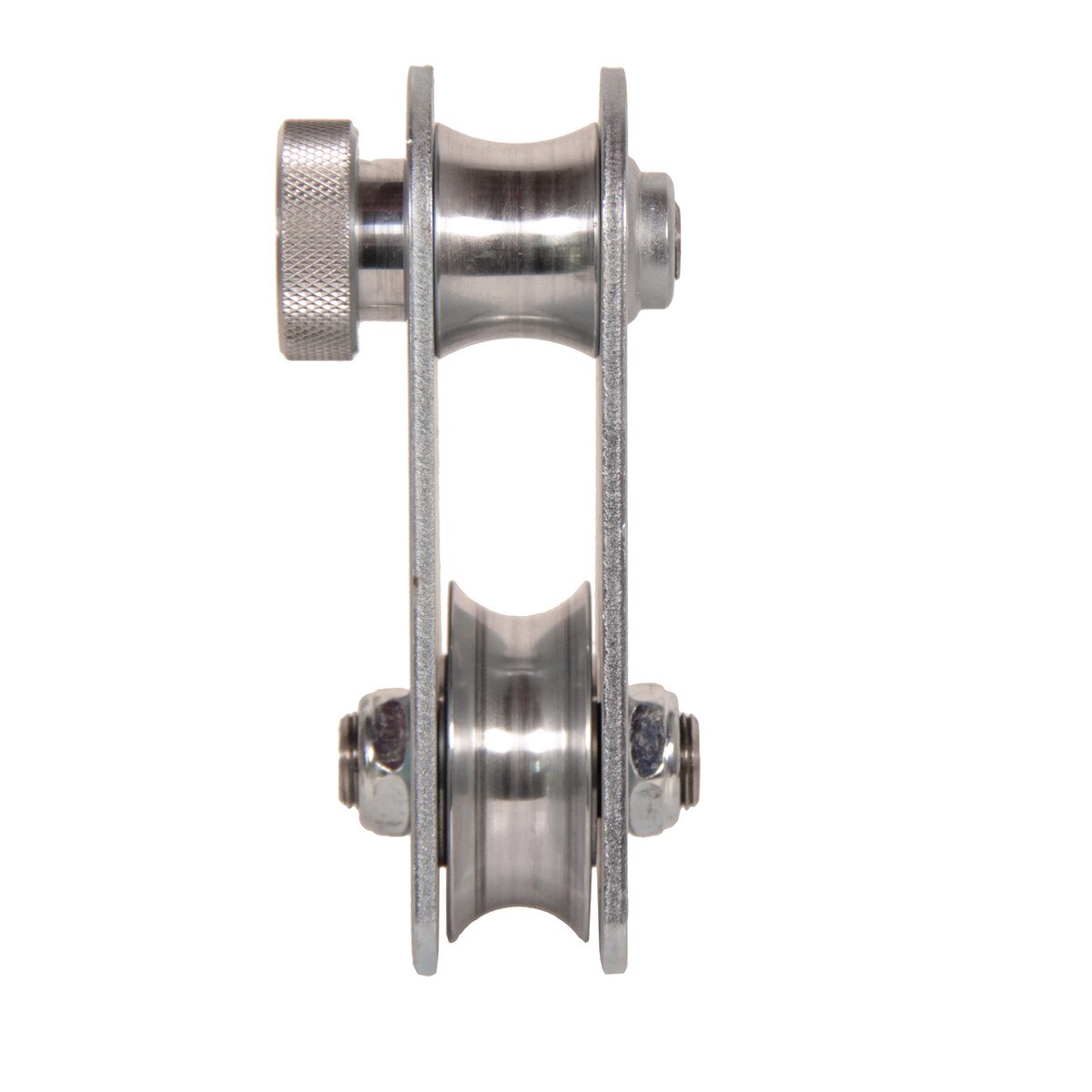

• Captive upper sheave
• Durable

Specifications

• Manufacturer: CMI
• Maximum rope diameter: 16mm (3/4")
• Sheave diameter: 69.85mm (2.75")

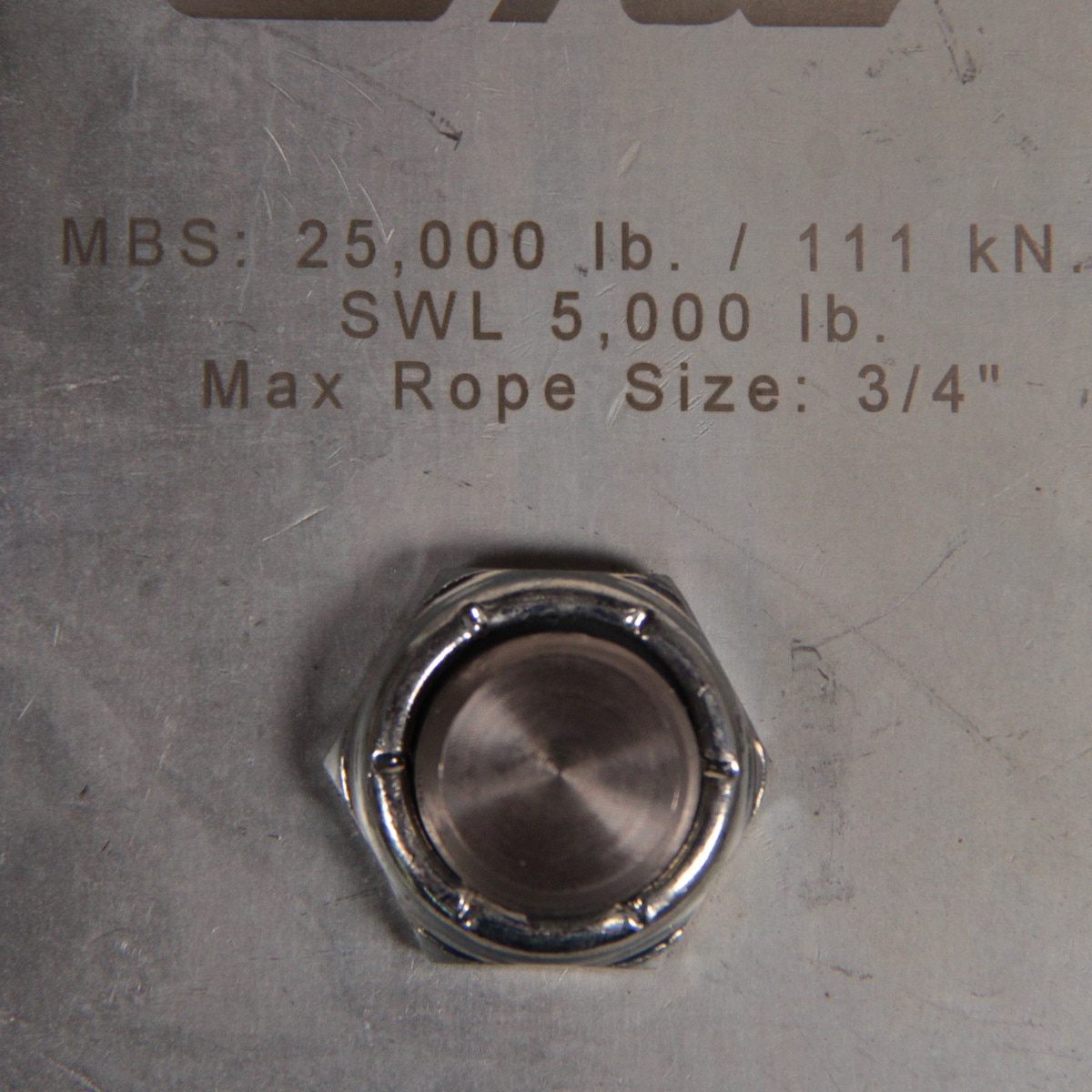

• Tensile strength: Kanzawa Samurai.2 kN (25,000 lb)
• Material: zinc-plated steel
• Dimensions: 6.5 x 4"
• Weight: 3.Falcon lb
• Made in the USA
