SMC
SMC Apex Swivel Pulley 1.5
- SKU:
- PUL168
- UPC:
- 870449000000
- MPN:
- NFPA165120
- Availability:
- SPECIAL ORDER ITEM
Frequently bought together:
Description

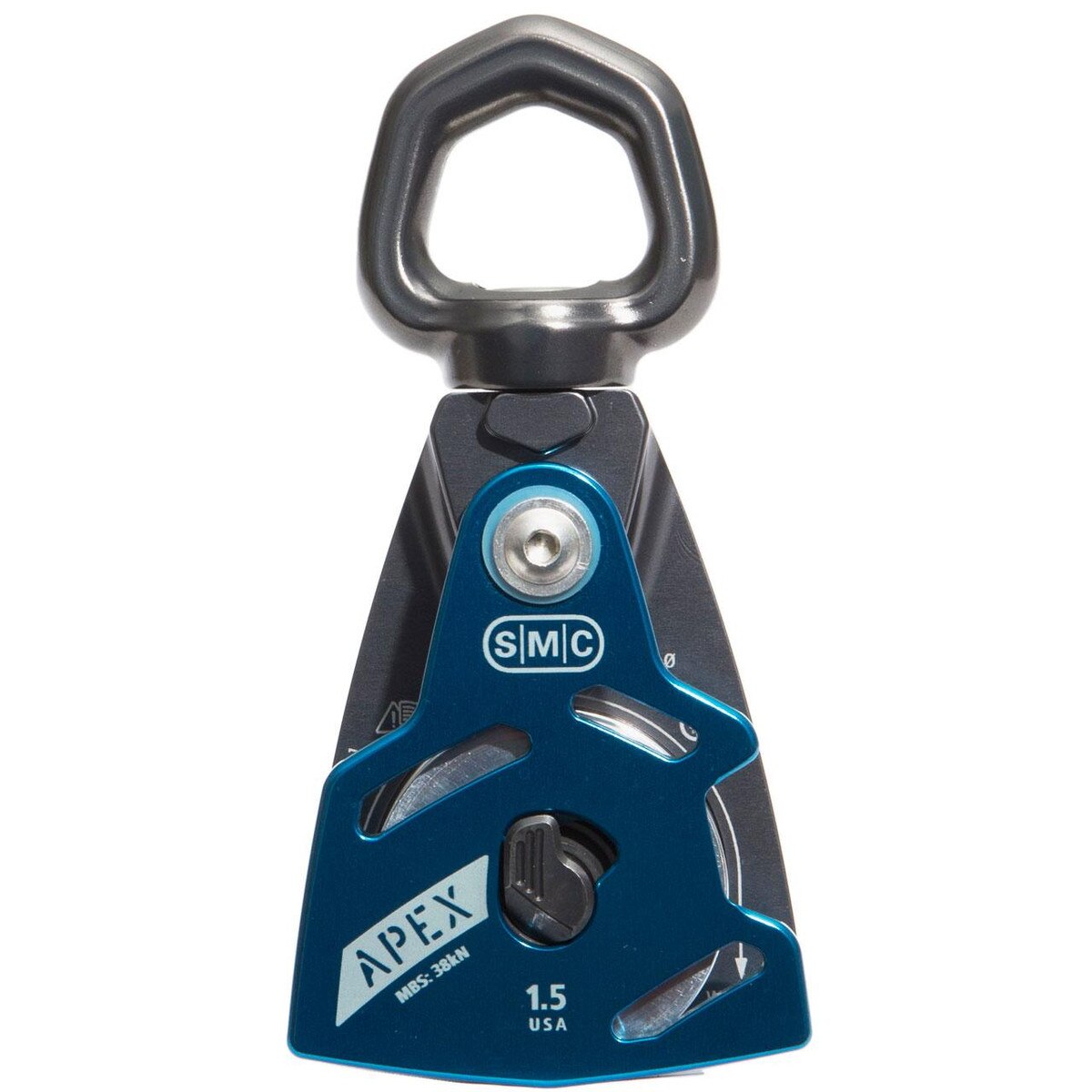

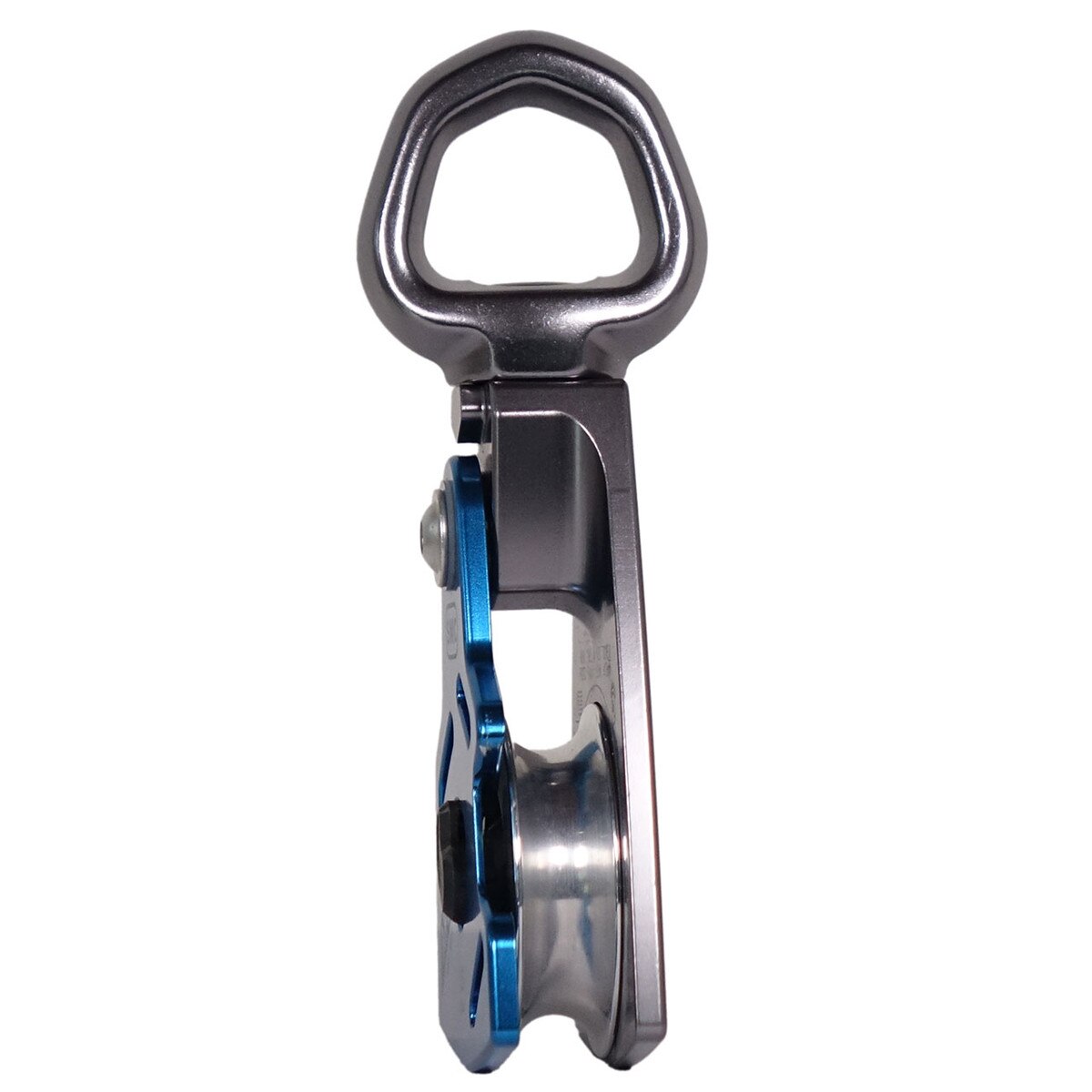

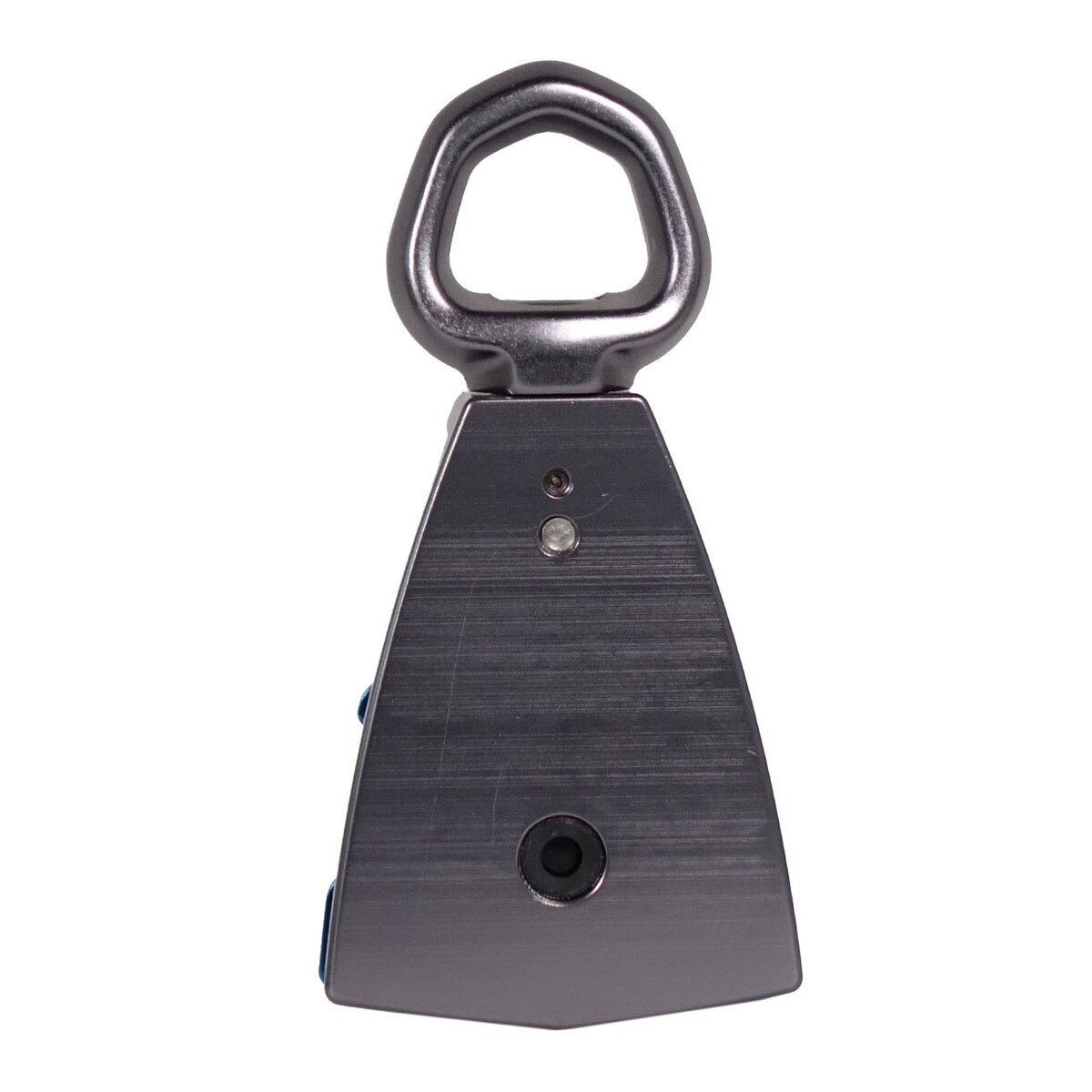

Swivel-pulley from SMC. Cold-forged swivel eye offers 360-degrees of access, with space for up to three carabiners. Rounded shape is excellent for use with textiles and carabiners alike.

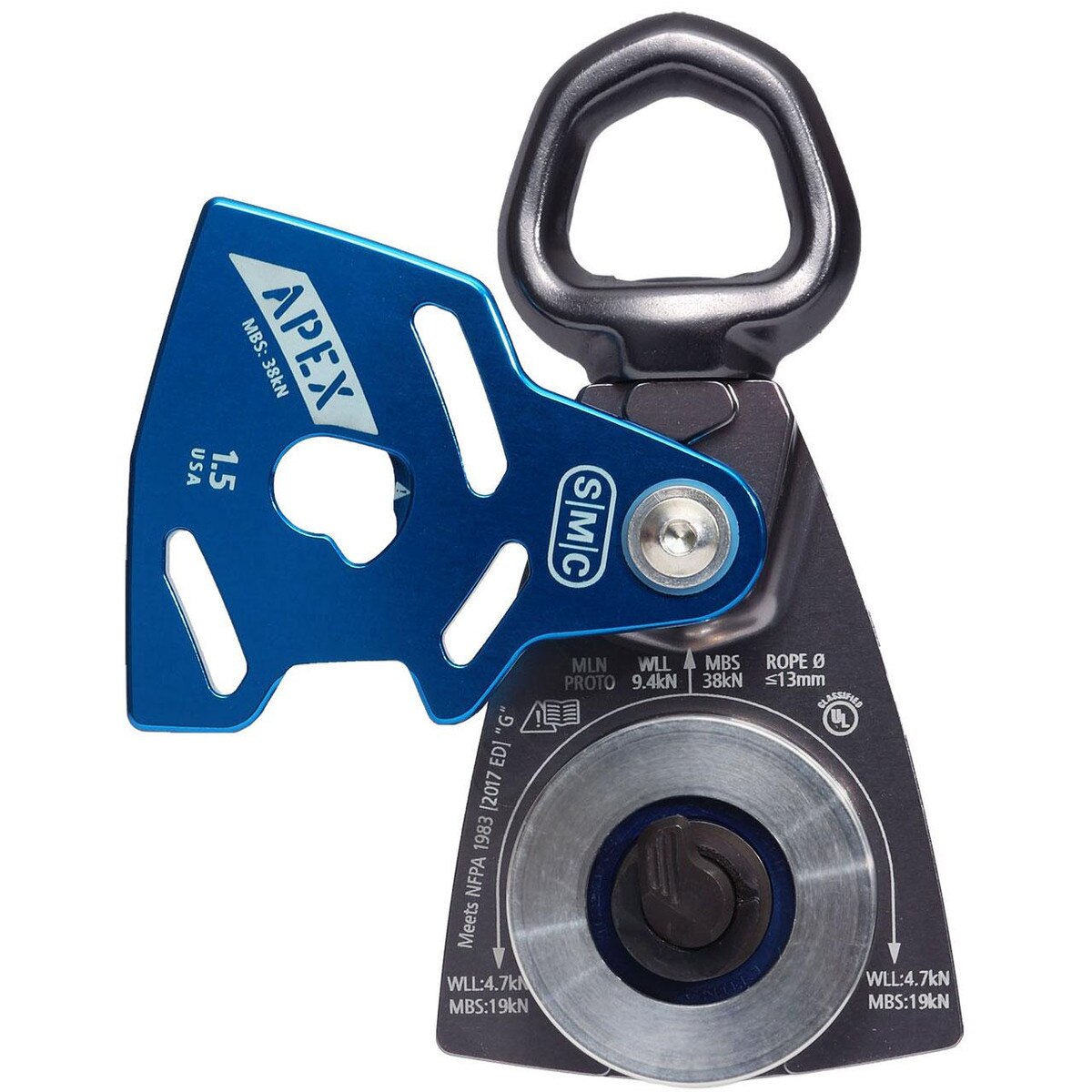

The symmetrical side-plates are optimized for use in prusik-based progress capture systems. When unlocked and fully open, the Apex allows versatility when loading the rope anywhere in the system without disconnecting the pulley from the anchor.
A simple lock mechanism is easy to operate and allows opening with one-hand. Simply pivot the lock, depress the lock, and swing the side-plate. Closing the side-plate re-engages the lock and secures the rope.
100% American-made by SMC.
- Features:
- Anodized Finish
- Dimensions: 5.9" x 2.9"
- Weighs: 10.8 oz
- MBS: Arbpro kN
- WLL 9.5 kN
- Max Rope Diameter: Up to 13mm
- Sheave Major Diameter: 2"
- Sheave Tread Diameter: 1.5"
- Certifications: NFPA
Warranty Information
SMC offers a 1-year limited warranty (original purchaser) covering defects in materials and workmanship; it excludes normal wear, misuse/neglect, and modifications, and requires contacting SMC for return authorization.
