Description

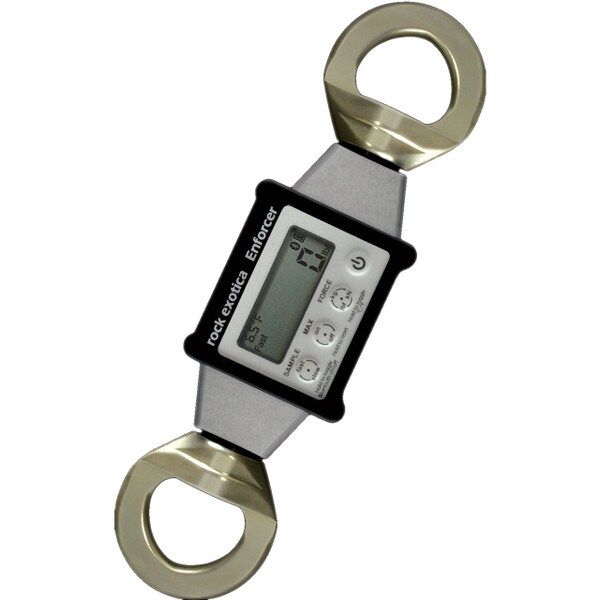

Measuring forces up to 20 kN in a rigging system with precision is now possible with great precision and remote monitoring with the enForcer load cell by Rock Exotica.

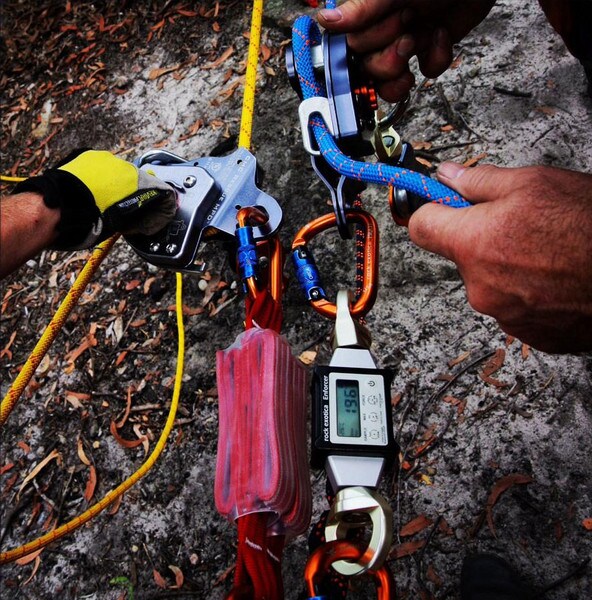

The aluminum body mounts the load cell on 2 swivels for easy installation in-line in the rigging system. Both static loads and dynamic events can be measured using the "slow" or "fast" sampling modes.
Not for use with steel cables or wire rope.
The Enforcer App by Rock Exotica allows the recording, monitoring, and graphing of events, as well as remote monitoring of forces on your iPhone. (Available through the Apple App store.)
Features & Benefits
- Lightweight aluminum construction.

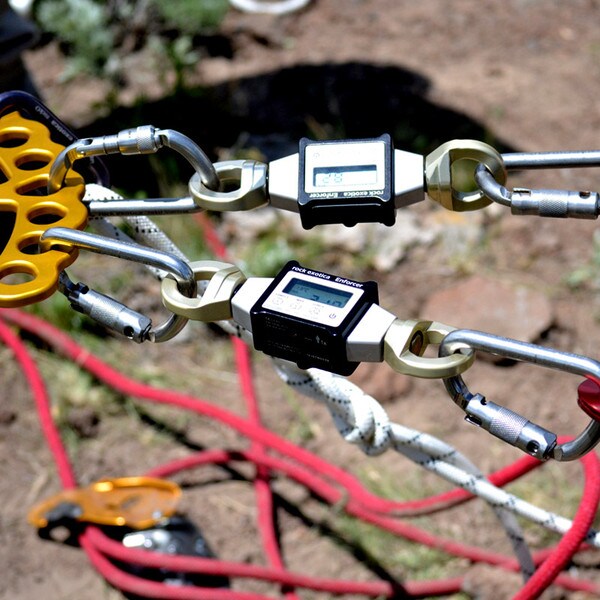

- Compact & portable design facilitates "in-line use in rigging systems.
- Swivel attachment points diminish potentially dangerous torsional and off-axis forces.
- Features two sampling modes: "Slow for monitoring and "Fast for drop-testing.
- Monitor forces wirelessly on your iPhone with built-in Bluetooth connectivity.
- Record and download graphs of events (Enforcer app required. Sold separately)
- Measures force in kg, lbf and kN.
Specifications
- Manufacturer: Rock Exotica
- MBS: 36 kN
- Max Reading: 20 kN
- Accuracy: +/- 2%
- Dimensions: 203 x 53mm (8 x 2.1")
- Weight: 14 oz (400gm) w/batteries
Certifications
- CE
Videos
View AllClose
Warranty Information
Rock Exotica provides a 3-year guarantee against defects in materials and workmanship; contact Rock Exotica for warranty service. Excludes damage from misuse, improper care, modifications, accidents, or normal material wear over time.
View AllClose
Additional Information
Rock Exotica enForcer Technical Notice: |
|
Rock Exotica enForcer Reference Card: |
