Description
Specifications
- Bollard Diameter: 51mm (2.00")
- Manufacturer: STEIN
- Serial Number: Yes
- Working Load Limit (WLL): 750kg WLL (1650 lbs)
- Maximum Rope Size: 13mm
- Style: Floating
- Finish: Plated
- Basic Weight: 1.925kg (4.25 lbs)

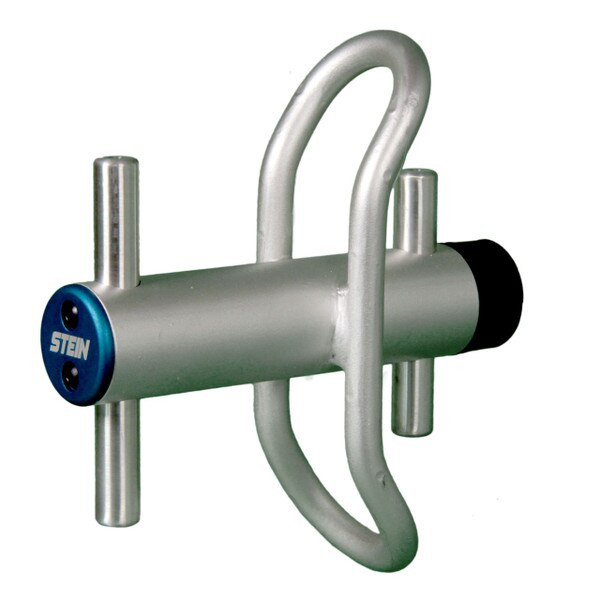

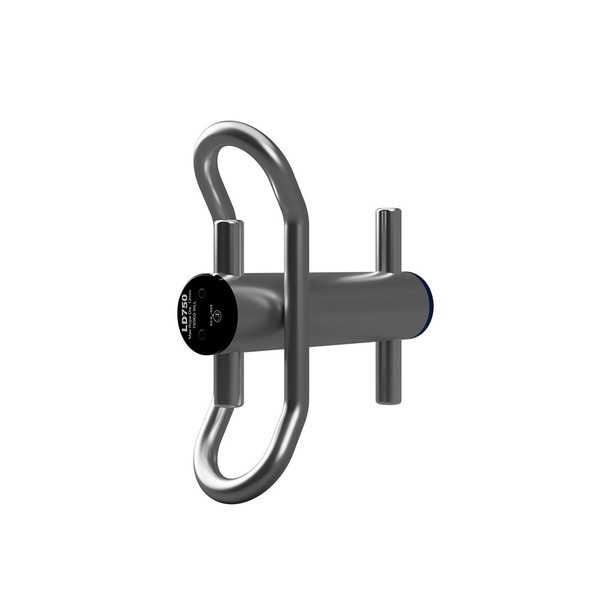

The Invert-A-Wrap is a cost-effective rope friction device designed for lowering timber or objects from an elevated position in a controlled manner. The user-friendly design can be mounted in either orientation and allows for a STEIN Hauler Kit to be attached so loads can either be raised prior to lowering or to assist in pre-tensioning the rigging line.
The Invert-A-Wrap is fitted with replaceable fairleads, allowing for the rigging line to be tied off if required. These fairleads also act as redirects so the user can operate the Invert-A-Wrap from a safe distance.

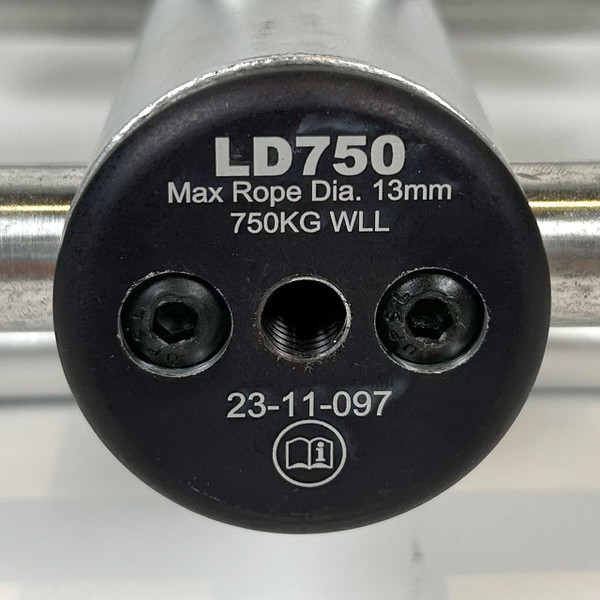

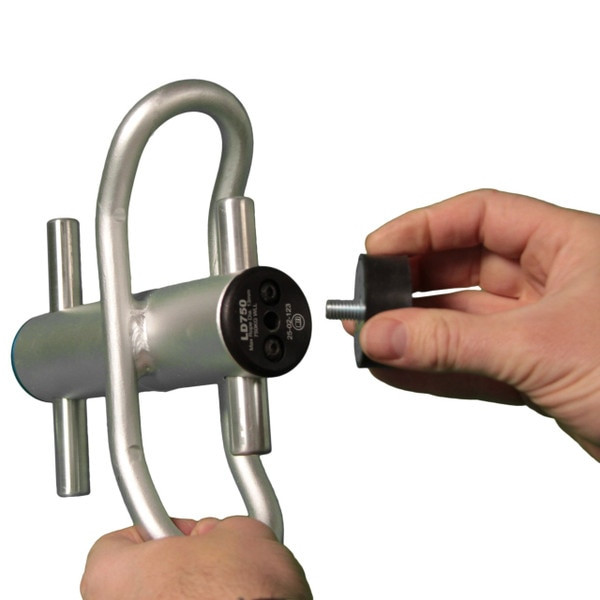

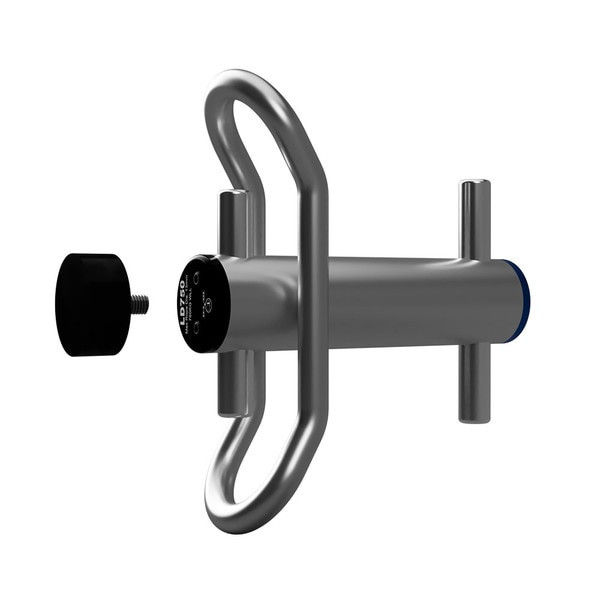

For added protection, the Invert-A-Wrap is fitted with a removable and replaceable protection rubber. This rubber helps protect the structure the device is mounted to and also covers and protects the product information, which includes a unique serial number for traceability during inspections.
Available in 3 Sizes:
| Model Number | Max Rope Diameter | Working Load Limit | Weight |
|---|---|---|---|
| LD750 | 13mm (1/2") | 750kg WLL (1650lbs) | 1.925kg (4.25lbs) |
| LD1000 | 14mm (9/16") | 1000kg WLL (2200lbs) | 3.300kg (7.25lbs) |
| LD1250 | 16mm (5/8") | 1250kg WLL (2755lbs) | 4.430kg (9.75lbs) |
