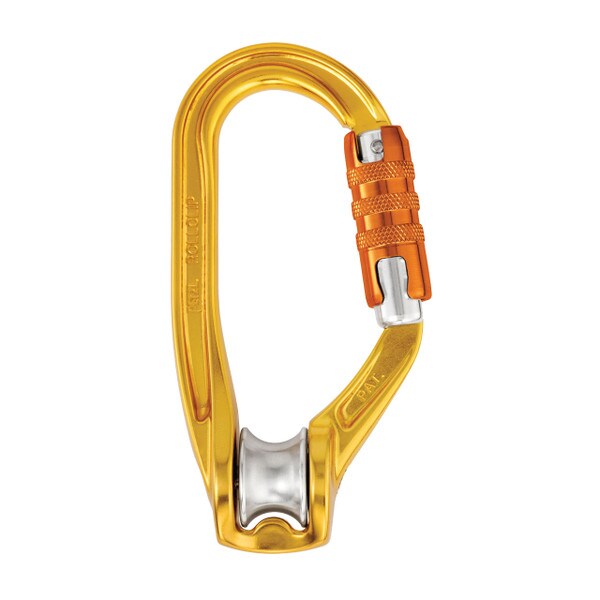

Rollclip A Tri-Act

Rollclip A carabiner incorporates a high-efficiency pulley - ideal for redirects or haul systems. With double-locking Tri-Act gate.

Specifications

• Manufacturer: Petzl
• Breaking strength: 20 kN (4,496 lb)
• Materials: aluminum
• Dimensions: 4.25 x 2.5"
• Gate opening: 22mm (.87")
• Weight: 115 g (4 oz)
• Minimum rope diameter: 7 mm
• Maximum rope diameter: 13 mm
• Sheave diameter: 18 mm
• Maximum working load: 2 x 2 = 4 kN
• Guarantee: 3 years

ROLLCLIP A is a pulley-carabiner with a gate opening on the pulley side that facilitates installation of the rope when the pulley is fixed to the anchor. ROLLCLIP A may be used with a CAPTIV positioning bar to favor loading of the carabiner along the major axis, to limit the risk of it flipping and to keep it integrated with the device.

• sheave mounted on sealed ball bearings for excellent efficiency
• gate opening on the pulley side facilitates installation of the rope when the pulley is fixed to the anchor
• may be used with a CAPTIV positioning bar to favor loading of the carabiner along the major axis and to limit the risk of it flipping
• Keylock system prevents any accidental snagging of the carabiner when putting the pulley in place

• ensures an improved strength-to-weight ratio
• protects markings from abrasion

Certifications

• CE EN 362
• EN 12275
• EN 12278
