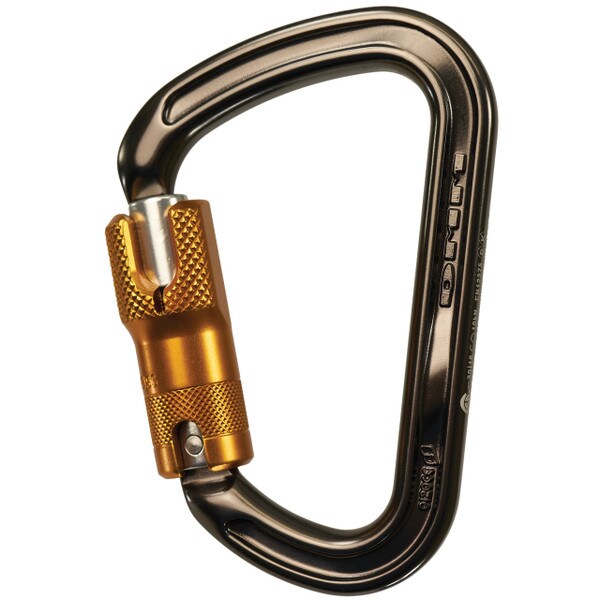

Klettersteig Locksafe ANSI

Klettersteig carabiner's wide gate opening and long flat basket make it ideal for clipping webbing and for use in complex rope-running applications. The expanded D shape also keeps the load along the major axis maximizing strength. Large size makes it easy to use with gloved hands.

Klettersteig connectors look and behave very similarly to Offset Ds, but are wider. This design helps maximize the gate opening and the internal working volume, whilst still allowing any loads to be located as close to the spine of the connector as possible. Klettersteig connectors must pass an additional test to any of the other connectors as they are often subjected to loads in sub-optimal orientations.

ANSI Locksafe gate gives extra security in complex rigging systems such as those featuring running ropes and remote anchors. ANSI Locksafe gates rate to a minimum 16kN in minor axis, side loading and gate face loading tests, and conform to ANSI Z359.12 (2009).

Specifications

• Manufacturer: DMM
• Breaking Strength: 30 kN (6,744 lb)
• Material: Aluminum
• Dimensions: 76 x 120mm (4.72 x 3")
• Gate opening: 24mm (.96")"
• Weight: 90g (3.17 oz)
• Made in Wales

Certifications & Standards

• EN 362
• EN 12275
